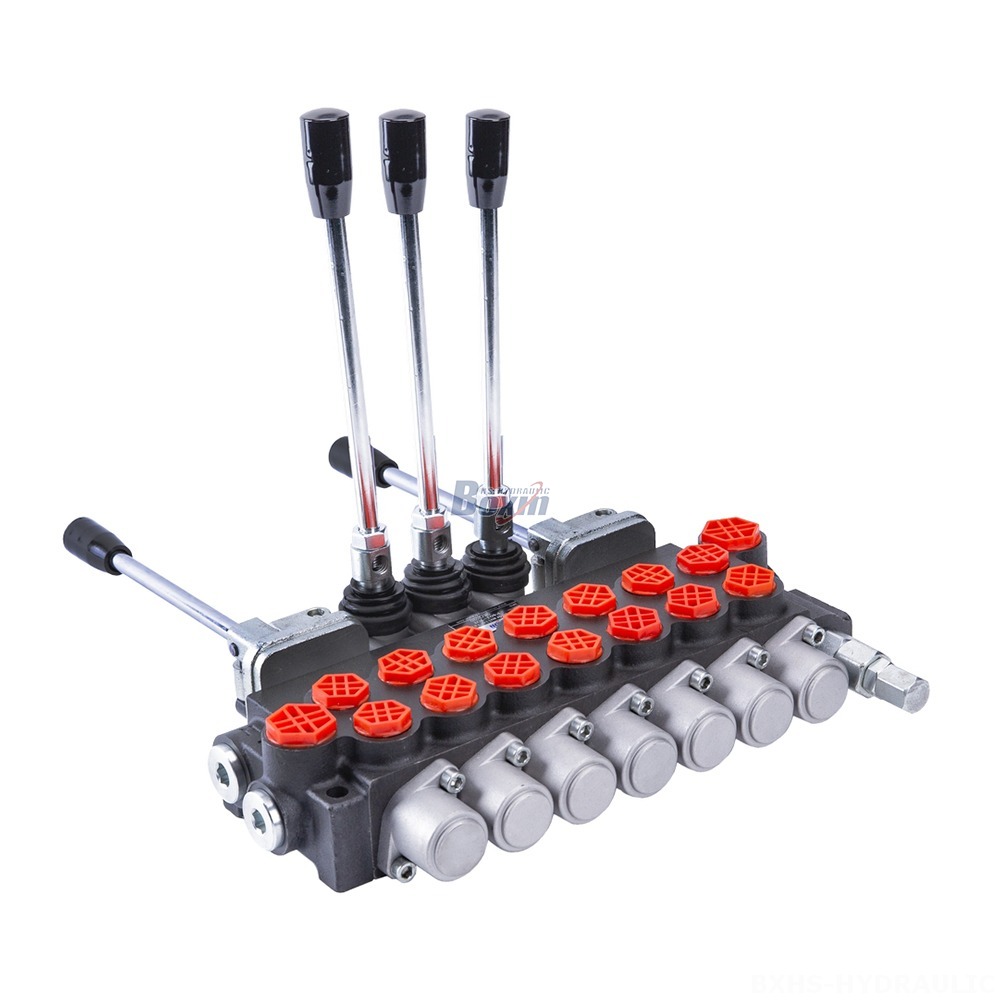

P40 Joystick Directional Control Valve

Experience precise control with the P40 Joystick Directional Control Valve. This economical monoblock valve features a compact structure and stable performance. With a parallel circuit type and options for 1-7 sections, it offers versatility for various applications. Upgrade your systems with this affordable and intuitive joystick-controlled valve solution.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Control Method

joystick

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P40 Joystick Directional Control Valve – the ideal choice for precise control in various applications. The P40 series consists of economical monoblock valves known for their compact structure and stable performance.

Featuring a parallel circuit type, the P40 valve seamlessly integrates into hydraulic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections provides flexibility to meet specific system requirements.

With its low price and high universality, the P40 valve offers exceptional value without compromising on quality. Whether you’re a small business or a large-scale manufacturer, the P40 valve provides reliable support, helping you enhance productivity while keeping costs in check.

Experience the reliability and performance of the P4 0 Joystick Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With the added convenience of a joystick control, the P40 valve enables intuitive and precise control for improved efficiency.

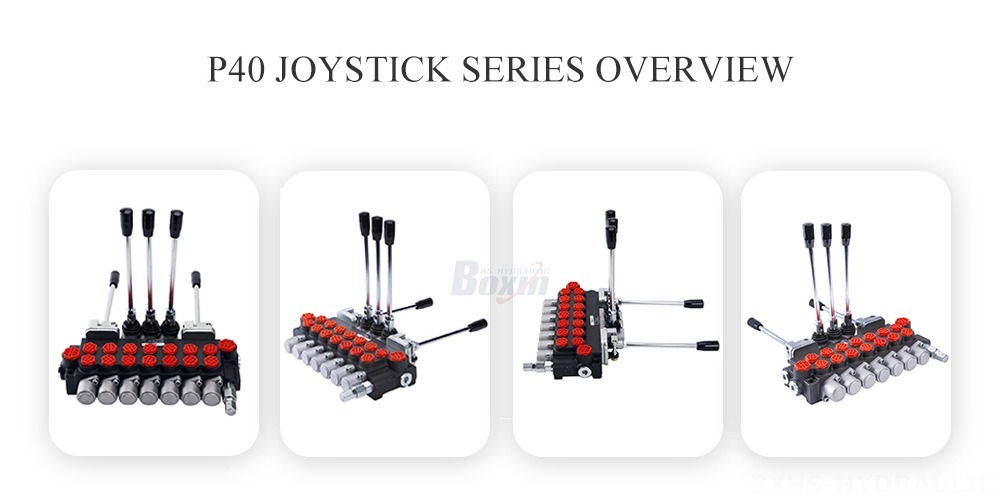

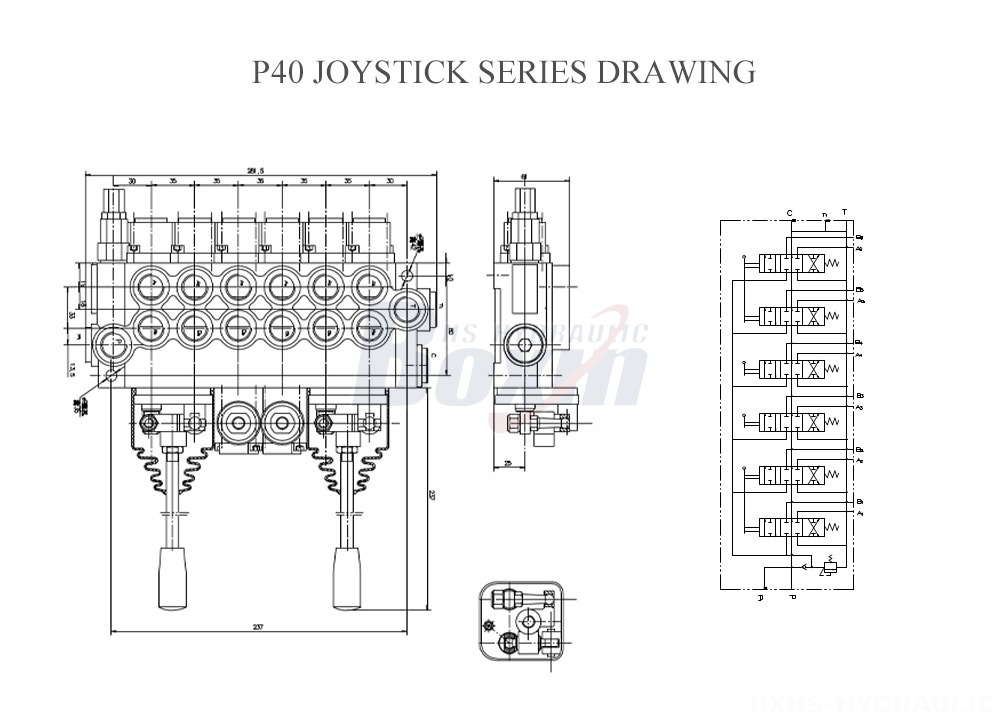

P40 Joystick Series DrawingP40 Joystick Series Overview
