All productsShowing 361–378 of 393 results
P80 Solenoid Directional Control Valve
In stock
| Control Method |
solenoid |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P81 Log Splitter Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
95 L/min (25 GPM) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
Only one sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
| Kick out set pressure |
70-140 bar (1015-2030 psi) |
Q75 Directional Control Valve
In stock
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
75 L/min (19.6 gpm) |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5100 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
Only one sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5200 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
2 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5300 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
3 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
SD18 Hydraulic Valve: 42.2 GPM Monoblock Directional Valve – Distributor, Wholesaler & Agent Inquiries Welcome
In stock
| Weight | 13.50 kg |
|---|---|
| Dimensions | 19 × 36 × 13 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
160 L/min (42.2 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Spool |
1 Spool |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Product model |
SD18 Manual |
SD5-G38 10.5 GPM 4-Spool Manual Directional Valve: Manufacturing, OEM, and Wholesale Supply
In stock
| Weight | 8.90 kg |
|---|---|
| Dimensions | 22.5 × 23.5 × 12.5 cm |
| Control Method |
manual |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
4 Spool |
| Product model |
SD5-G38 Manual |
SD5-G38 Hydraulic Valve: 10.5 GPM Monoblock Directional Valve – Manufacturing, Distribution & Customization
In stock
| Weight | 3.80 kg |
|---|---|
| Dimensions | 23 × 20 × 12 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
1 Spool |
| Product model |
SD5-G38 Manual |
Sectional Directional Valve SD8: 23.8 GPM, 3 Spool, Solenoid & Joystick – Manufacturing, OEM, Private Label, Wholesale
In stock
| Weight | 22.00 kg |
|---|---|
| Dimensions | 28 × 42 × 16 cm |
| Control Method |
Solenoid and Joystick |
| Section |
3 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
90 L/min (23.8 gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
3 Spool |
| Product model |
SD8 Solenoid and Joystick |
SHFY-G25L-00 52 GPM Hydraulic Directional Valve: Manufacturing, OEM, Wholesale & Distribution Opportunities
In stock
| Weight | 6.50 kg |
|---|---|
| Dimensions | 16 × 32 × 16 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
200 L/min (52 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
1 Spool |
| Product model |
SHFY-G25L-00 Manual |
TR55 Directional Control Valve
In stock
| Valve Structure |
Monoblock Valve |
|---|---|
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic, solenoid |
| Nominal Flow |
45 L/min (12 gpm) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Viscosity Range |
12 CST-400 CST |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Sections |
1-7 sections |
TR55 Hydraulic Directional Valve: 10.5 GPM, 6 Spool, Manual & Joystick – Global Distributor & Wholesaler Wanted
In stock
| Weight | 17.00 kg |
|---|---|
| Dimensions | 33 × 35 × 16 cm |
| Control Method |
Manual and Joystick |
| Section |
6 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
6 Spool |
| Product model |
TR55 Manual and Joystick |

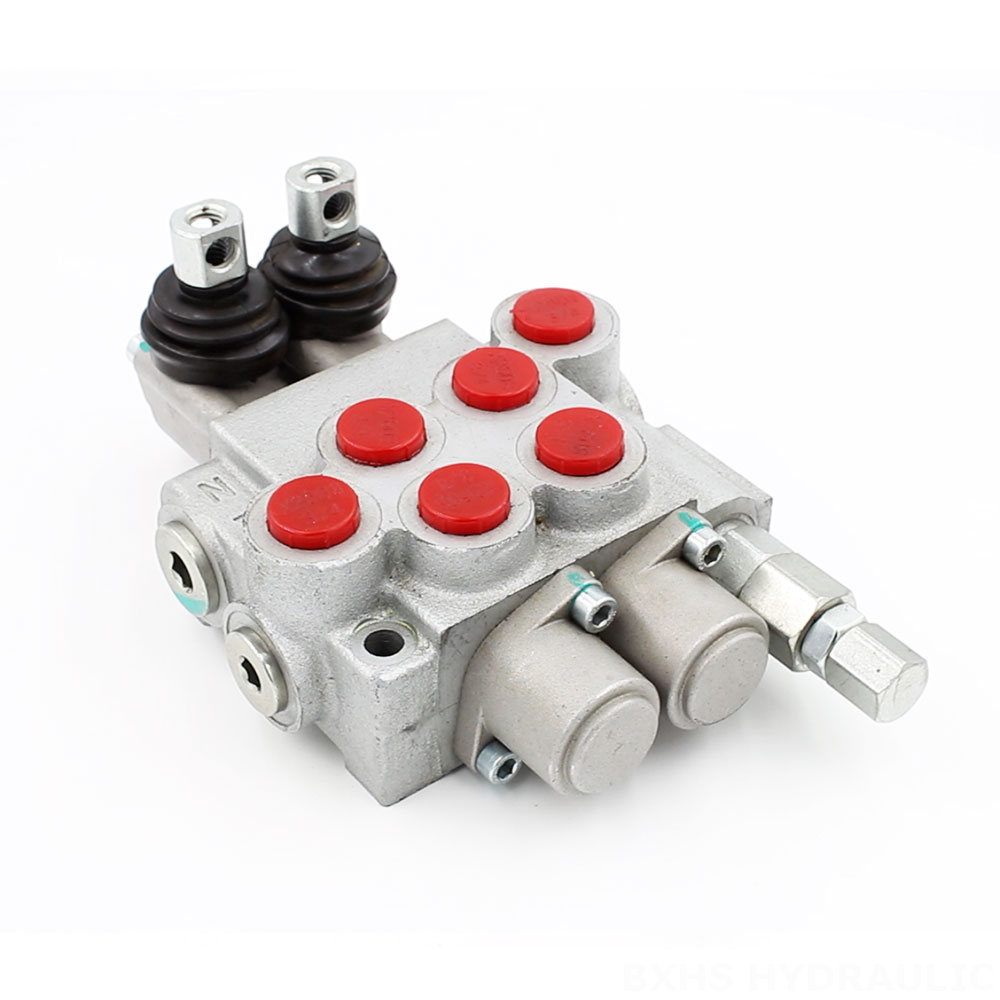

Wholesale 10.5 GPM 2-Spool Manual Directional Valves (P40-DKL) – Manufacturing, OEM & Distribution
In stock
| Weight | 4.80 kg |
|---|---|
| Dimensions | 23 × 18 × 13 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
2 Spool |
| Product model |
P40-DKL Manual |
Wholesale 10.5 GPM 3-Spool Manual Directional Valves | Monoblock Hydraulic Valve P40-G12-G38-2OT-QTW
In stock
| Weight | 6.60 kg |
|---|---|
| Dimensions | 24 × 21 × 13 cm |
| Control Method |
manual |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
3 Spool |
| Product model |
P40-G12-G38-2OT-QTW Manual |
Wholesale 10.5 GPM 4-Spool Solenoid Directional Valves (P40-DKL) – Manufacturing, ODM & Distribution
In stock
| Weight | 14.50 kg |
|---|---|
| Dimensions | 31 × 24 × 17 cm |
| Control Method |
solenoid |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (25 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
4 Spool |
| Product model |
P40-DKL Solenoid |
Wholesale Hydraulic Monoblock Directional Valves: 10.5 GPM 4 Spool Manual P40-G12-G38-2OT-2QTW – Distributors & Dealers Welcome
In stock
| Weight | 8.20 kg |
|---|---|
| Dimensions | 23 × 24 × 13 cm |
| Control Method |
manual |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
4 Spool |
| Product model |
P40-G12-G38-2OT-2QTW Manual |
Wholesale Hydraulic Monoblock Directional Valves: 10.5 GPM 4-Spool Manual P40-G38 – Global Distribution
In stock
| Weight | 8.20 kg |
|---|---|
| Dimensions | 24 × 23 × 13 cm |
| Control Method |
manual |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
4 Spool |
| Product model |
P40-G38 Manual |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
