All productsShowing 1–18 of 63 results
Sectional directional control valves are essential components in hydraulic systems, providing precise control over fluid flow and pressure. With a range of options available, including the HSSD8, HSSD15, HSSD11, CDB, ZL, DCV60, DCV100, DCV140, DCV200, and HDCF series, there is a valve suitable for every hydraulic system.
The HSSD8, HSSD15, and HSSD11 series are compact and versatile, making them ideal for use in mobile equipment and other applications with limited space. The CDB and ZL series offer exceptional performance and durability for larger hydraulic systems, while the DCV60, DCV100, DCV140, and DCV200 series are designed for heavy-duty applications that require high flow rates and pressure.
No matter which Sectional directional control valve series you choose, you can expect exceptional quality and performance from a trusted brand. With so many options to choose from, you’re sure to find the perfect valve for your needs. Contact us today to learn more about how we can help you with your hydraulic system needs.
15.8 GPM 3 Spool Hydraulic Directional Valve (DCV60) – Global Manufacturer & Distributor
In stock
| Weight | 18.30 kg |
|---|---|
| Dimensions | 29 × 35 × 17 cm |
| Control Method |
cable |
| Section |
3 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
60 L/min (15.8 US gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
3 Spool |
| Product Model |
DCV60 Cable |
23.8 GPM 2-Spool Solenoid Directional Valve (SD8) – Manufacturer, Supplier, Distributor, OEM & Wholesale Available
In stock
| Weight | 15.00 kg |
|---|---|
| Dimensions | 42 × 25 × 18 cm |
| Control Method |
solenoid |
| Section |
2 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
90 L/min (23.8 gpm) |
| Max Pressure |
350 bar (5100 psi), 250 bar (3600 psi) |
| Spool |
2 Spool |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Product model |
SD8 Solenoid |
26.5 GPM Hydraulic Directional Control Valve (DCV100) – Manufacturing, Wholesale & Distribution Opportunities
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 35 × 24 × 16 cm |
| Control Method |
pneumatic |
| Section |
1 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
1 Spool |
| Product Model |
DCV100 Pneumatic |
52 GPM 2 Spool Electro-hydraulic Directional Control Valve (DCV200) – Global Supplier & Distributor
In stock
| Weight | 33.00 kg |
|---|---|
| Dimensions | 48 × 30 × 18 cm |
| Control Method |
electro-hydraulic |
| Section |
2 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
200 L/min (52 US gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
DCV200 Electro-hydraulic |
BXHS 9-Spool Manual Sectional Directional Valve (23.8 GPM) – Global Distributor & Reseller Opportunities
In stock
| Weight | 37.00 kg |
|---|---|
| Dimensions | 50 × 30 × 17 cm |
| Control Method |
manual |
| Section |
9 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
90 L/min (23.8 gpm) |
| Max Pressure |
350 bar (5100 psi), 250 bar (3600 psi) |
| Spool |
9 Spool |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Product model |
SD8 Manual |

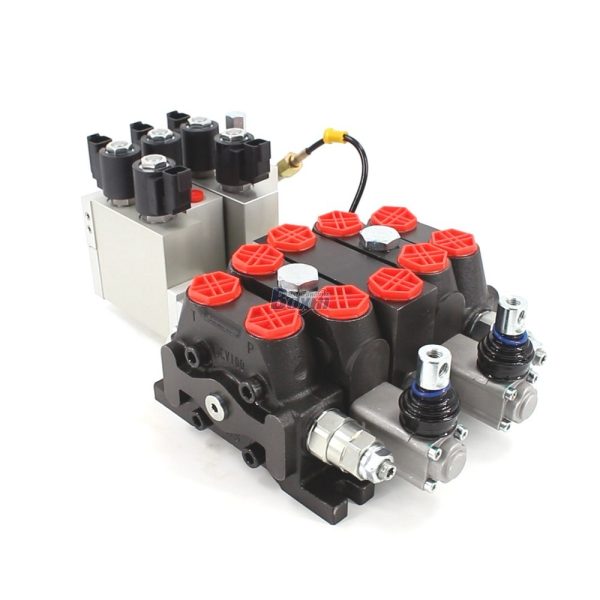

BXHS Electro-hydraulic Directional Control Valve (26.5 GPM, 2 Spool) – DCV100 Wholesale & Distribution Available
In stock
| Weight | 24.00 kg |
|---|---|
| Dimensions | 41 × 30 × 16 cm |
| Control Method |
electro-hydraulic |
| Section |
2 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
DCV100 Electro-hydraulic |
CDB15 Series Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Rated Flow |
63 L/min (16.6 gpm) |
| Rated Pressure |
200 bar (20 MPa) |
| Nom. Diameter |
15 mm |
| Dividing Flow |
8-12 L/min |
| Dividing Flow Valve Pressure |
90 bar (9 MPa) |
| Number of Spools |
1 spool, 2 spool, 3 spool, 4 spool, 5 spool, 6 spool, 7 spool, 8 spool, 9 spool, 10 spool |
| Valve Sections |
1-10 Sections |
DCV Directional Control Valve
In stock
| Flow |
20~200 L/min |
|---|---|
| Number of spools |
1~12 spools |
| Inlet section type |
Side inlet, withrelief vaive, lnlet port on top of inletsection,Outiet onoutlet section (only forDCV60-100see table7F5-8), Top inlet,withrelief valve, Inlet and outletpart ontop of inlet section(only for DCV60-100match F7 in table 7) |
| Relief valve set pressure |
100~250 bar |
| Control type |
manual, joystick,cable, solenoid, pneumatic, electro-hydraulic, electro-pneumatic |
| Spool type |
3 positions,double acting, 3 positions.double acting.A&B open, 3 positions,double actingA open.B blocked, 3 positions, double actingA blocked.B open, 3 positions,singleacting in A.A open, 4 positions,doubleacting with 4th floatingposition |
| Port size |
G1/4, G3/8, G1/2, G3/4, G1, M16X1.5, M18X1.5, M20X1.5, M22X1.5, M27X2, 5/8-12UNF, 3/4-16UNF, 7/8-14UNF, 1-12UNF, 11/8-12UNF, NPT3/8, NPT1/2, NPT3/4, NPT1 |
DCV100 Electro-hydraulic Directional Control Valve
In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV100 Electro-pneumatic Directional Control Valve
In stock
| Control Method |
electro-pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV100 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV100 Pneumatic Directional Control Valve
In stock
| Control Method |
pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV140 Electro-hydraulic Directional Control Valve
In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
140 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV140 Electro-pneumatic Directional Control Valve
In stock
| Control Method |
electro-pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
140 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV140 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
140 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV200 Electro-hydraulic Directional Control Valve
In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
200 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DCV200 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
200 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
