All productsShowing 1–18 of 22 results
Hydraulic Gear pumps are positive displacement pumps that use gears to transfer fluids. They are commonly used in applications that require a steady flow rate, such as in hydraulic systems, lubrication systems, and fuel transfer applications. Our gear pumps are made of high-quality materials and are designed to provide reliable and efficient performance. Contact us today to learn more about our gear pumps and how they can benefit your application.
C101 Gear Pump
In stock
| Model code |
C101 |
|---|---|
| Teeth width (in) |
20: 2.0” , 25: 2.5" |
| Circuit |
2 circuits (without 3 circuit sleeves) , 3 circuits (with 3 circuit sleeves) |
| Rotation |
L: Left (counter-clockwise) |
| Operation style |
R: Right rotation (clockwise) , AS: Pneumatic , MS: Manual |
| Safety valve pressure |
20: 14 MPa, 25: 17.5 MPa, 27: 20 MPa |
C102 Gear Pump
In stock
| Model code |
C102 |
|---|---|
| Teeth width (in) |
20: 2.0” , 25: 2.5" |
| Circuit |
2 circuits (without 3 circuit sleeves) , 3 circuits (with 3 circuit sleeves) |
| Rotation |
L: Left (counter-clockwise) |
| Operation style |
R: Right rotation (clockwise) , AS: Pneumatic , MS: Manual |
| Safety valve pressure |
20: 14 MPa, 25: 17.5 MPa, 27: 20 MPa |
CBG Series Gear Pump
In stock
| Displacement |
32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 125 cc/rev, 140 cc/rev, 160 cc/rev |
|---|---|
| Flange Version |
A-Oval Flange, B-Square Flange |
| Shaft Type |
H: Rectangle Spline, X: Involute Spline, P: Plain Key |
| Port Position |
1: side in side out |
| Rotation |
L: Left (counter-clockwise), R: Right (clockwise) |
CBGJ Series Gear Pump
In stock
| Displacement |
32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 125 cc/rev, 140 cc/rev, 160 cc/rev |
|---|---|
| Flange Version |
A-Oval Flange, B-Square Flange |
| Shaft Type |
H: Rectangle Spline, X: Involute Spline |
| Port Position |
1: side in side out |
| Rotation |
L: Left (counter-clockwise), R: Right (clockwise) |
CBHS-F532 32cc/rev Hydraulic Gear Pump: Manufacturer, Distributor & Wholesaler
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 37 × 17 × 17 cm |
| Displacement |
32 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2200 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
P: Plain Key, H: Rectangle Spline, X: Involute Spline |
| Product model |
CBHS-F532 32 cc/rev |
CBHS-F550 Hydraulic Gear Pump (50 cc/rev): Global Supplier for Distributors & Wholesalers
In stock
| Weight | 14.00 kg |
|---|---|
| Dimensions | 37 × 17 × 17 cm |
| Displacement |
50 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2200 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
P: Plain Key, H: Rectangle Spline, X: Involute Spline |
| Product model |
CBHS-F550 50 cc/rev |
CBHS-FL304 Hydraulic Gear Pump (4 cc/rev): Distributor, Wholesaler & Agent Inquiries Welcome
In stock
| Weight | 9.00 kg |
|---|---|
| Dimensions | 20 × 30 × 20 cm |
| Displacement |
4 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
3000 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Aluminium |
| Flange Version |
A-Oval Flange |
| Shaft Type |
P: Plain Key |
| Product model |
CBHS-FL304 4 cc/rev |
CBHST1 SK UNI Gear Pump
In stock
| Model code |
CBHST1-SK |
|---|---|
| Displacement |
63 cc/rev, 80 cc/rev |
| Mounting |
B: Square flange |
| Joining port |
L: Screw |
| Shaft Type |
H: Rectangle Spline |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Port Position |
1: side in side out , 2: side in bottom out , 3: bottom in bottom out , 4: bottom in side out |
Hydraulic Gear Pump 10 cc/rev NSH-10 | Manufacturer, OEM, ODM, Wholesale & Distribution
In stock
| Weight | 2.60 kg |
|---|---|
| Dimensions | 20 × 15 × 13 cm |
| Displacement |
10 cc/rev |
| Rated Pressure |
18 MPa (2610 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
4200 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Aluminium |
| Flange Version |
B-Square Flange |
| Shaft Type |
X: Involute Spline |
| Product model |
NSH-10 10 cc/rev |
Hydraulic Gear Pump 32 cc/rev CBHS-F532 – Manufacturing, OEM, Private Label & Wholesale
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 37 × 17 × 17 cm |
| Displacement |
32 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2200 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
P: Plain Key, H: Rectangle Spline, X: Involute Spline |
| Product model |
CBHS-F532 32 cc/rev |
Hydraulic Gear Pump 4 cc/rev CBHS-FL304 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 9.00 kg |
|---|---|
| Dimensions | 20 × 30 × 20 cm |
| Displacement |
4 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
3000 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Aluminium |
| Flange Version |
A-Oval Flange |
| Shaft Type |
P: Plain Key |
| Product model |
CBHS-FL304 4 cc/rev |
Hydraulic Gear Pump 50 cc/rev CBHS-F550: Manufacturing, OEM, ODM, Customization & Wholesale
In stock
| Weight | 14.00 kg |
|---|---|
| Dimensions | 37 × 17 × 17 cm |
| Displacement |
50 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2200 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
P: Plain Key, H: Rectangle Spline, X: Involute Spline |
| Product model |
CBHS-F550 50 cc/rev |

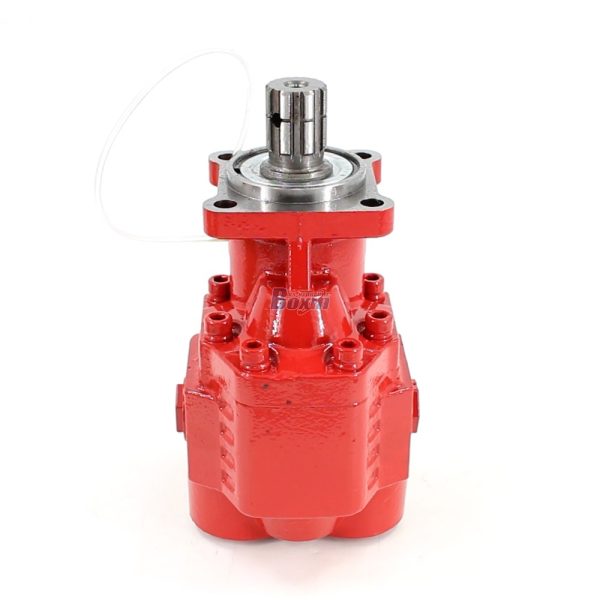

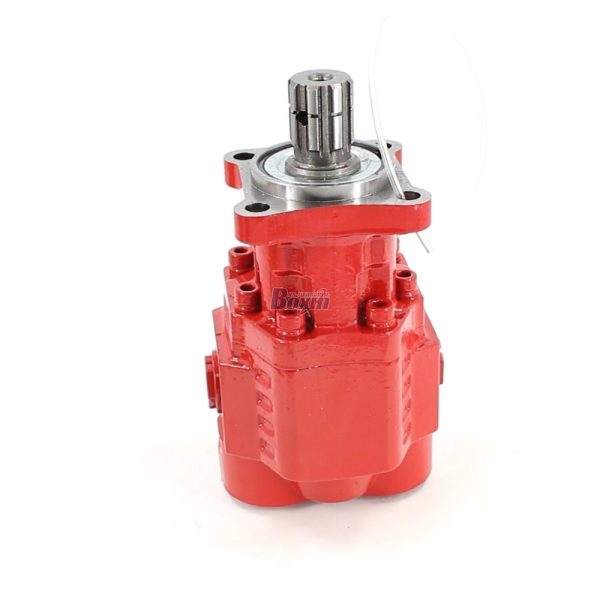

Hydraulic Gear Pump 63 cc/rev CBHST1-ISO-63: Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 18.20 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
63 cc/rev |
| Rated Pressure |
23 MPa (3335 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
Swashplate |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| product Model |
CBHST1-ISO-63 63 cc/rev |
Hydraulic Gear Pump 63 cc/rev CBHST1-UNI-63: Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 18.20 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
63 cc/rev |
| Rated Pressure |
23 MPa (3335 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
Swashplate |
| Material |
Cast Iron |
| Flange Version |
UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline, X: Involute Spline |
| product Model |
CBHST1-UNI-63 63 cc/rev |
NSH-10 Hydraulic Gear Pump (10 cc/rev) – Factory Direct Supply, Global Wholesale
In stock
| Weight | 2.60 kg |
|---|---|
| Dimensions | 20 × 15 × 13 cm |
| Displacement |
10 cc/rev |
| Rated Pressure |
18 MPa (2610 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
4200 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Aluminium |
| Flange Version |
B-Square Flange |
| Shaft Type |
X: Involute Spline |
| Product model |
NSH-10 10 cc/rev |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
