Showing 37–54 of 75 results

hydraulic directional control valve

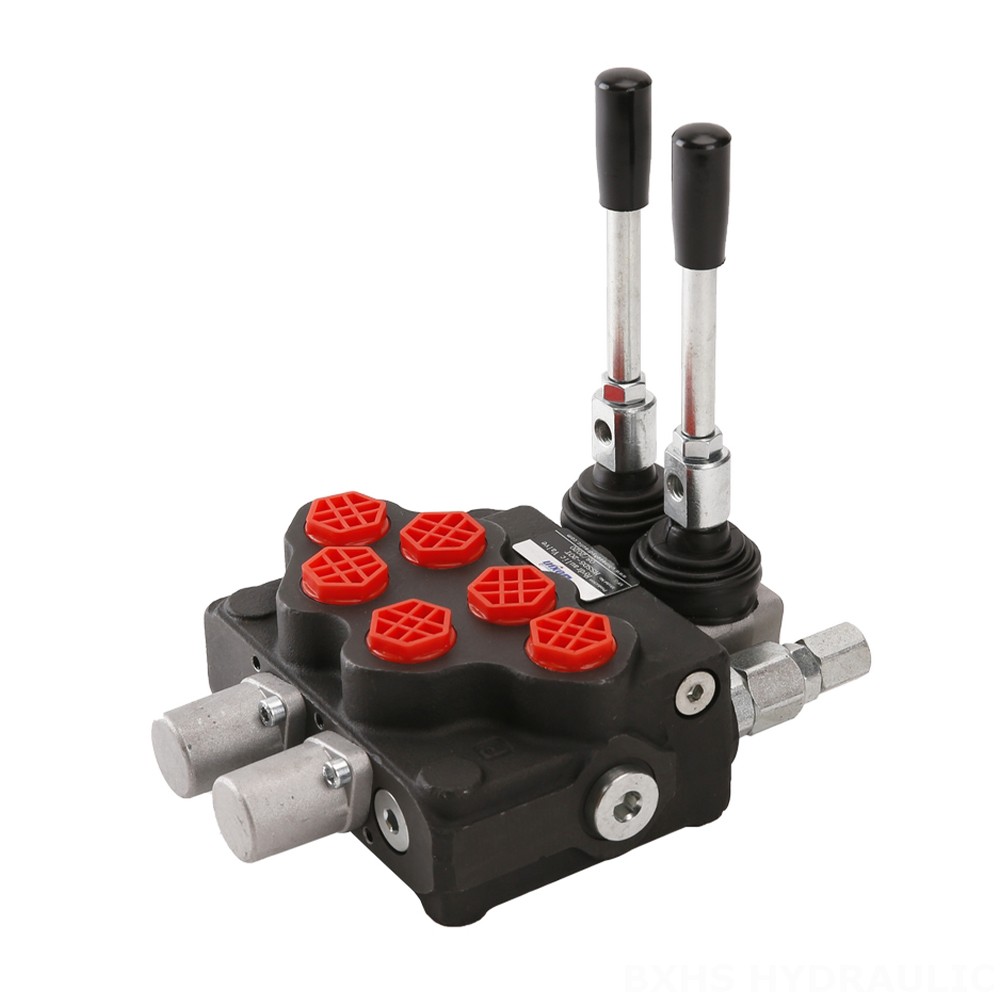

HSSD5 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD5 Solenoid Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD6 Directional Control Valve

In stock

Control Method

cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Operating Range

15-75 mm²/s (15-75 CST)

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +60°C (-40°F to +140°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-10 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD8 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD8 Solenoid Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSV6 Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

50 L/min (13.2 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-3 sections

Rustproof Level

Neutral salt spray test, 48hours

HSV9 Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

90 L/min (23.8 GPM)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Dacromet, Phosphating treating

Valve Sections

1-3 sections

Rustproof Level

Neutral salt spray test, 48hours

MP80 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

MPC70 Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

70 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P120 Directional Control Valve

In stock

Model No.

P120 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P120 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Cable Directional Control Valve

In stock

Control Method

cable

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Directional Control Valve

In stock

Model No.

P40 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Electro-hydraulic Directional Control Valve

In stock

Control Method

electro-hydraulic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Electro-pneumatic Directional Control Valve

In stock

Control Method

electro-pneumatic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Hydraulic Directional Control Valve

In stock

Control Method

hydraulic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Joystick Directional Control Valve

In stock

Control Method

joystick

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Our Products and Services

Here's what we can do

Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
