Showing all 4 results

hydraulic piston pump

LB-80 Hydraulic Piston Pump

In stock

Model code

LB-80

Displacement

80 cc/rev

Rated Pressure

315 bar (31.5 MPa)

Max Pressure

350 bar (35 MPa)

Rated Speed

2200 r/min

Max Speed

3000 r/min

Rotation

R: Right (clockwise)

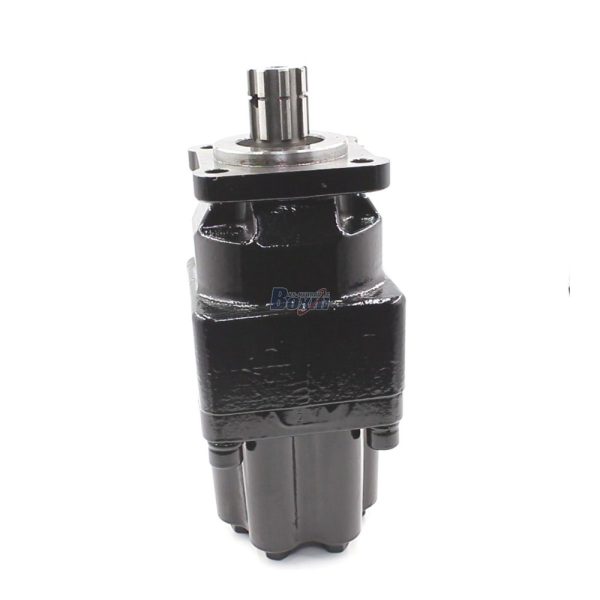

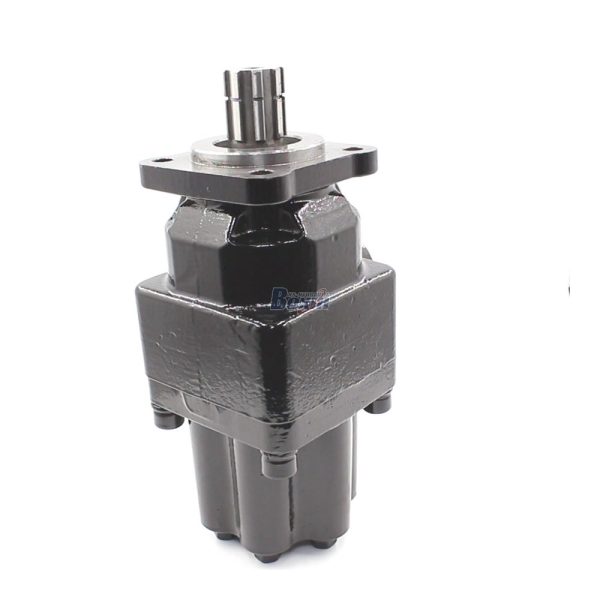

P Series Piston Pump

In stock

Model code

P6-40, P7-63, P9-80

Displacement

40 cc/rev, 63 cc/rev, 80 cc/rev

Flange Version

ISO-4 Mounting Holes, UNI-3 Mounting Holes

Rotation

L: Left (counter-clockwise), R: Right (clockwise), /: (Bidirectional)

P7-63 Piston Pump

In stock

Model code

P7-63

Displacement

63 cc/rev

Flange Version

ISO-4 Mounting Holes, UNI-3 Mounting Holes

Rotation

L: Left (counter-clockwise), R: Right (clockwise), /: (Bidirectional)

P9-80 Piston Pump

In stock

Model code

P9-80

Displacement

100 cc/rev

Port Position

1: side in side out , 2: side in bottom out , 3: bottom in bottom out , 4: bottom in side out

Mounting

B: Square flange

Joining port

L: Screw

Shaft Type

H: Rectangle Spline

Rotation

L: Left (counter-clockwise) , R: Right (clockwise)

Our Products and Services

Here's what we can do

Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
