All productsShowing all 13 results

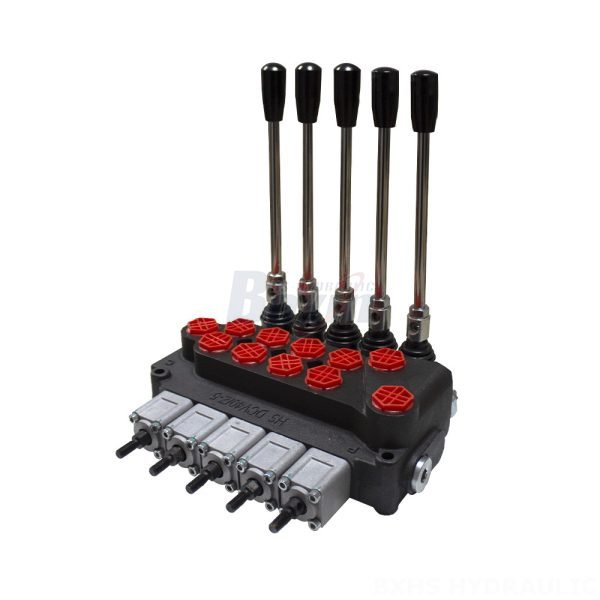

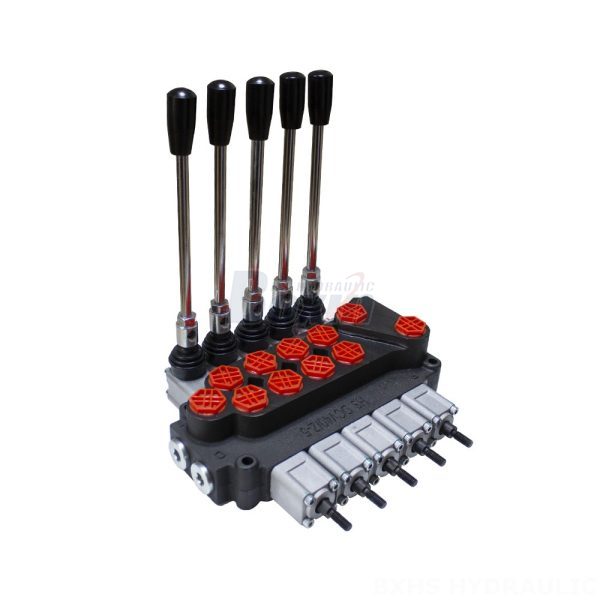

DCV40Z Under Carriage Valve
In stock
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic, solenoid |
|---|---|
| Valve Structure |
Monoblock Valve |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Sections |
1-5 sections |
| Number of Spools |
1 spool, 2 spool, 3 spool, 4 spool, 5 spool |

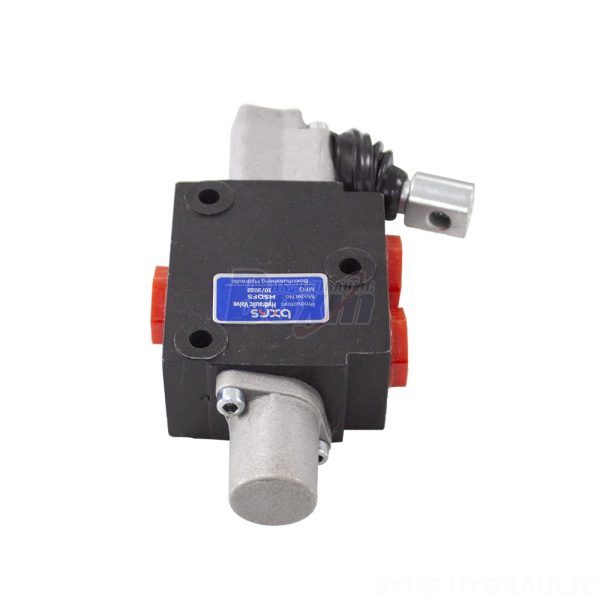

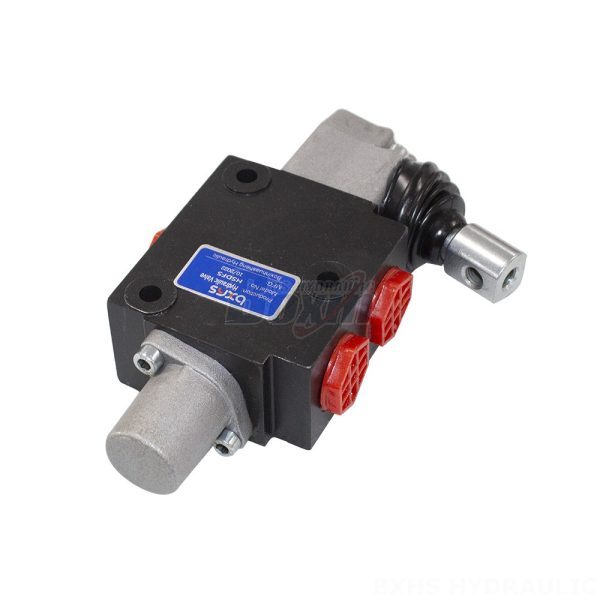

DF5 Series Rupture Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
60 L/min (15.8 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

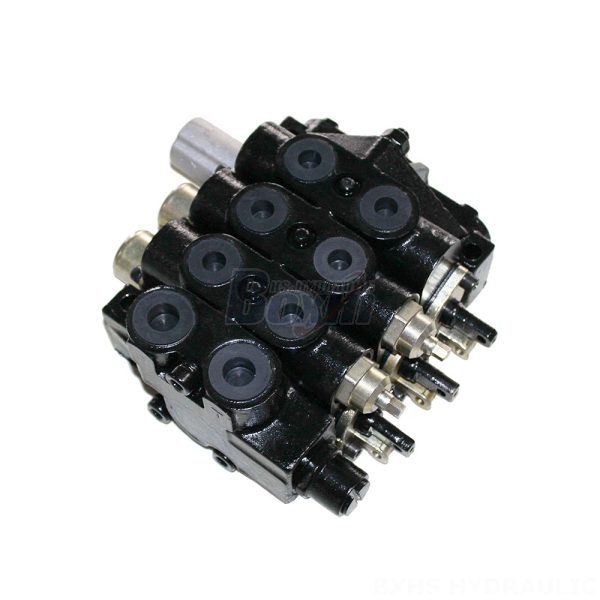

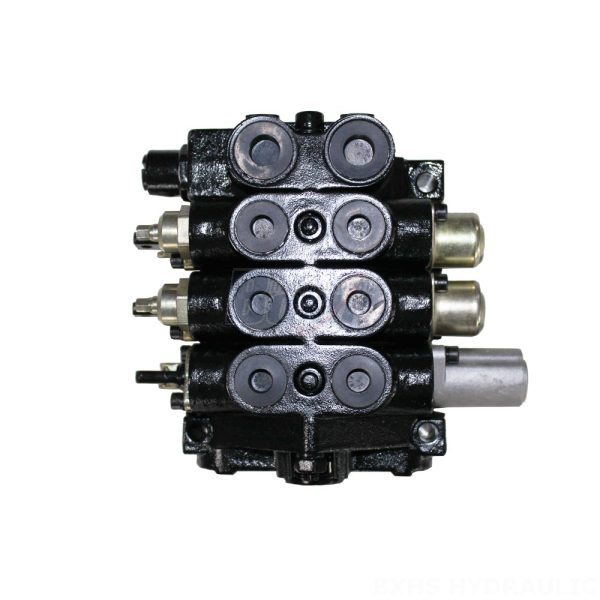

DF50 Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
50 L/min (13.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-3 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
DF80 Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-10 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

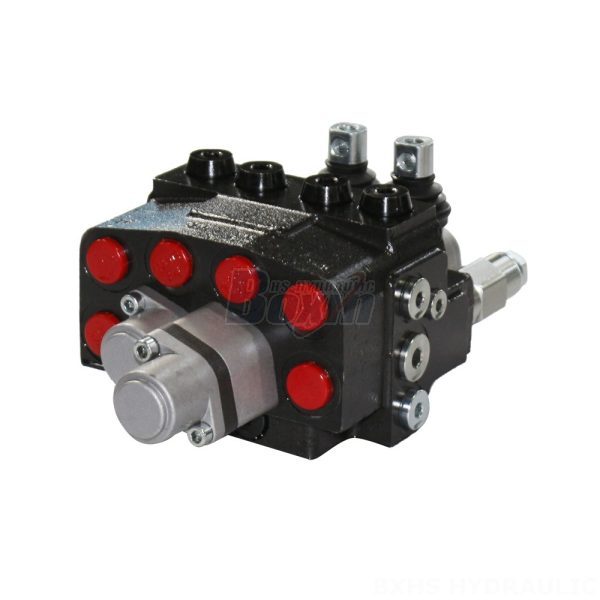

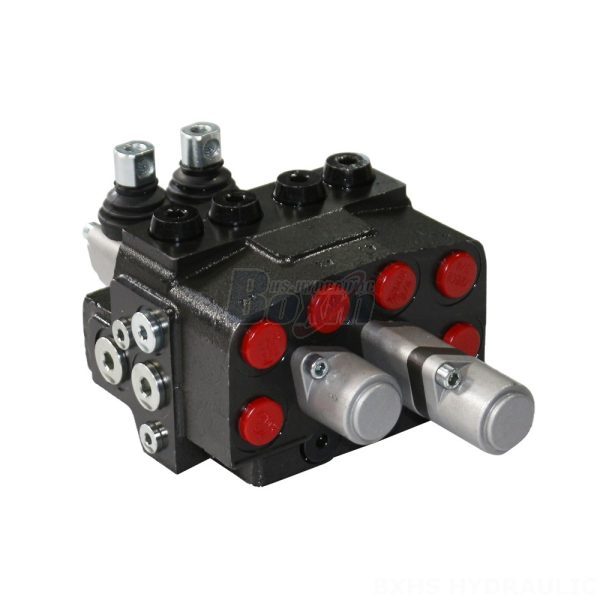

DM45 Directional Control Valve
In stock
| Valve Structure |
Monoblock Valve |
|---|---|
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic, solenoid |
| Nominal Flow |
45 L/min (12 gpm) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Viscosity Range |
12 CST-400 CST |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Sections |
1-7 sections |

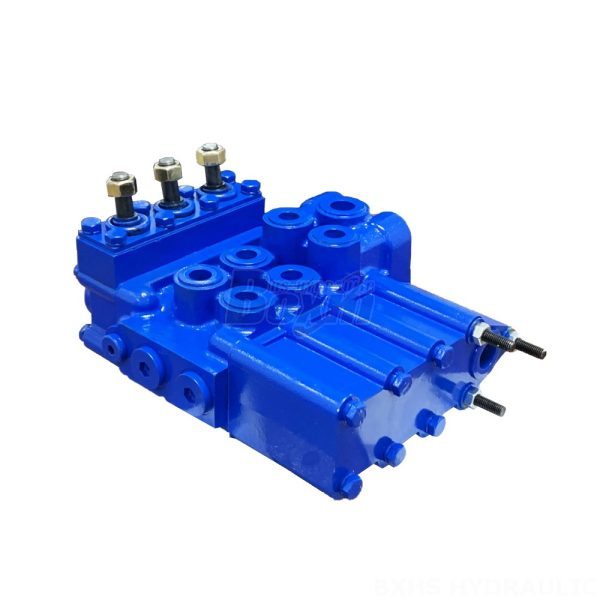

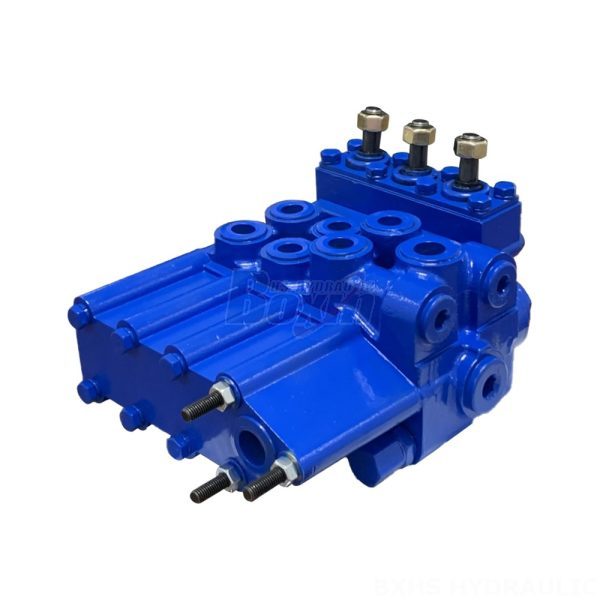

MP80 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

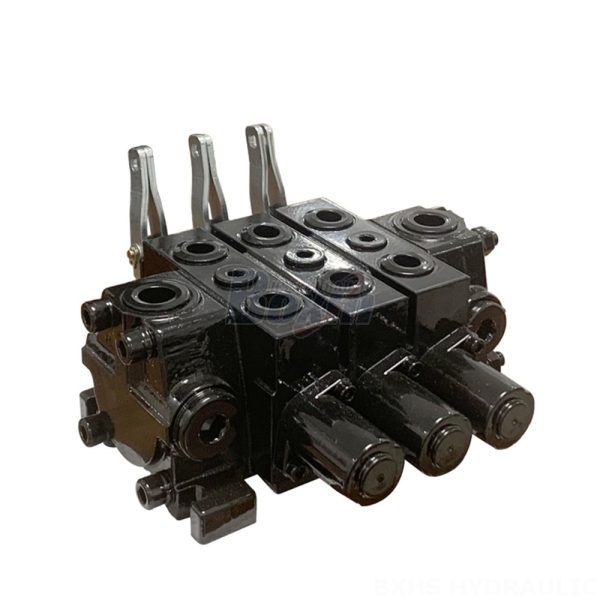

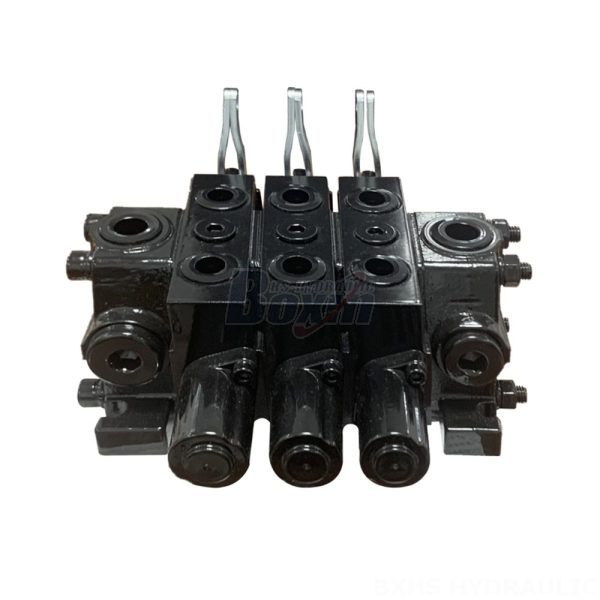

MPC70 Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
70 L/min (12 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

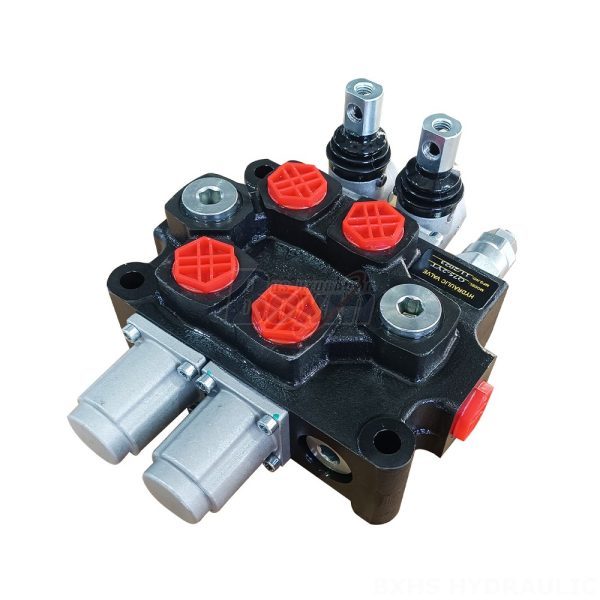

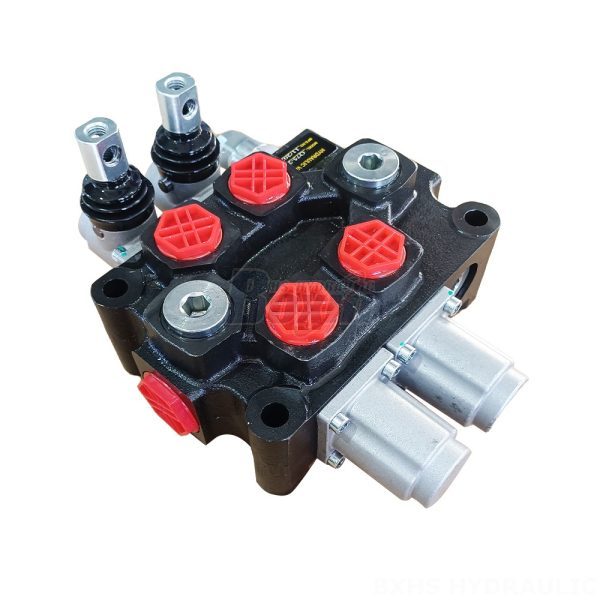

Q75 Directional Control Valve
In stock
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
75 L/min (19.6 gpm) |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

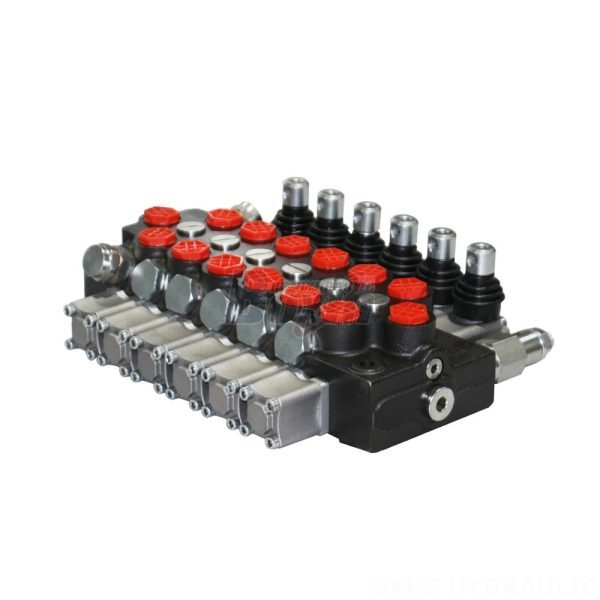

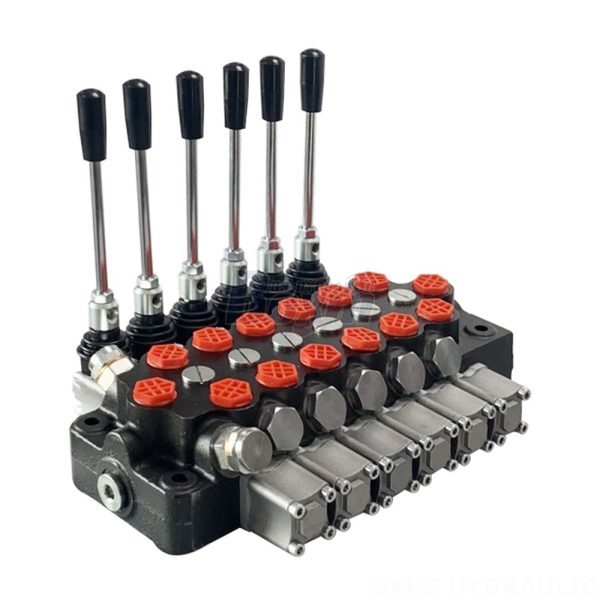

TR55 Directional Control Valve
In stock
| Valve Structure |
Monoblock Valve |
|---|---|
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic, solenoid |
| Nominal Flow |
45 L/min (12 gpm) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Viscosity Range |
12 CST-400 CST |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Sections |
1-7 sections |

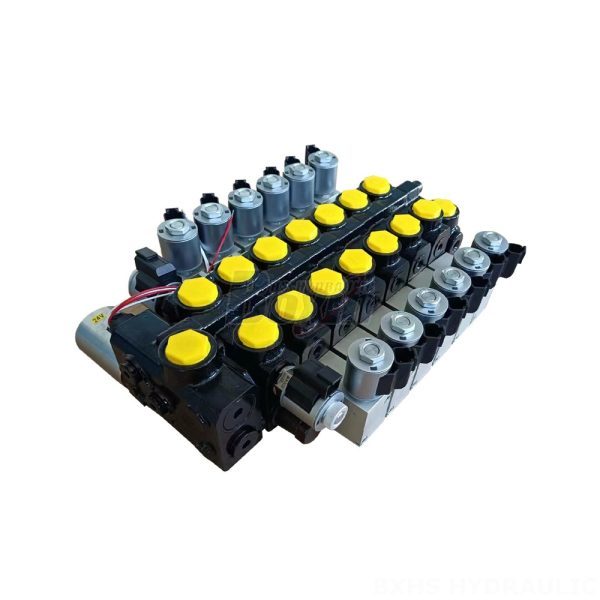

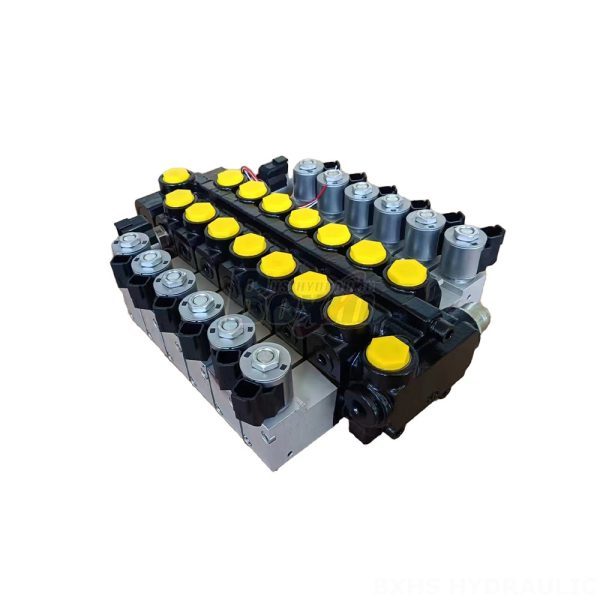

YDF15 Series Valve for Agricultural Machine
In stock
| Presure Medium |
Mineral oil based hydraulic oil |
|---|---|
| Nominal Flow |
65 L/min (17 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
ZT12 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

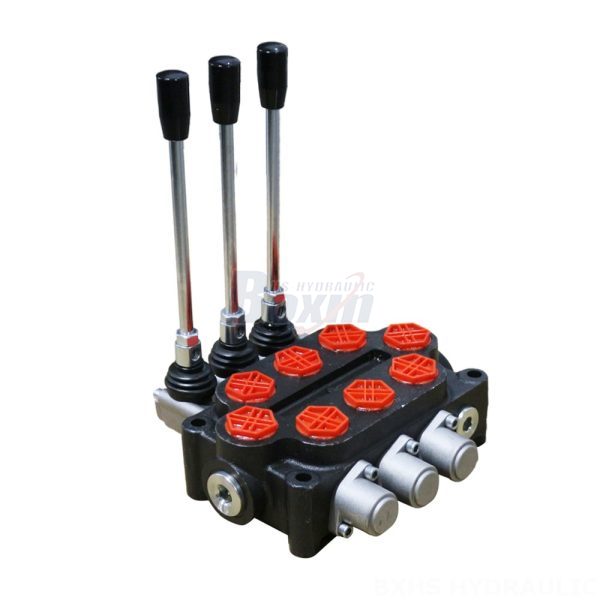

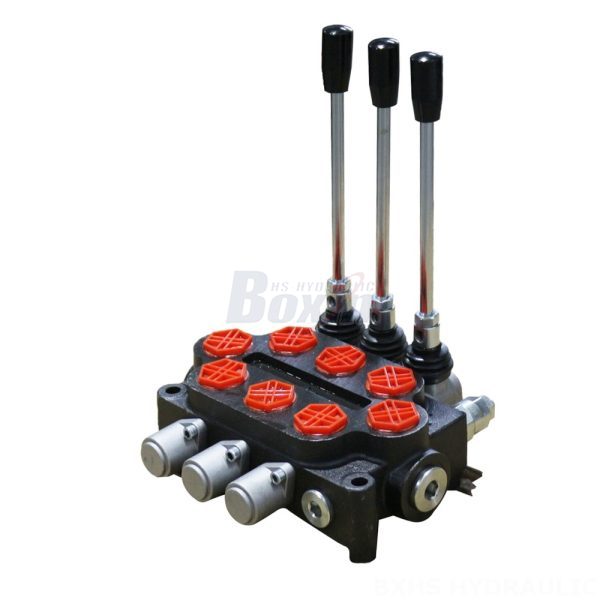

ZT20 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
