Showing 1–18 of 36 results

tractor hydraulic control valve

HSDS15 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

60 L/min (15.8 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSDS25 Hydraulic Directional Control Valve

In stock

Control Method

hydraulic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

240 L/min (63 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSDS25 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

240 L/min (63 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

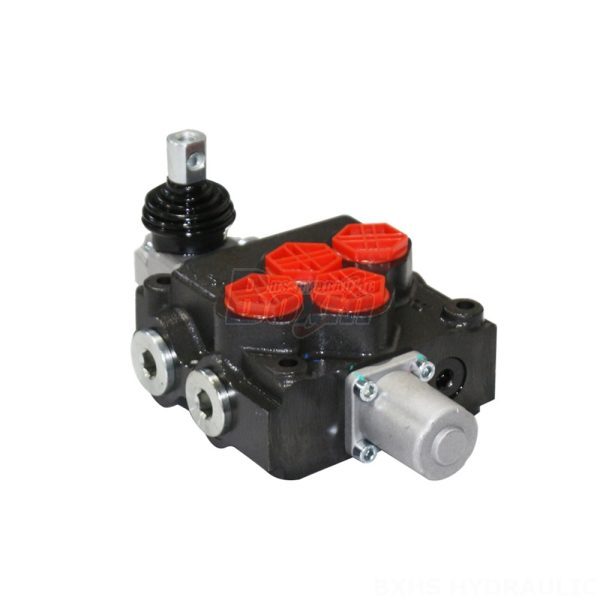

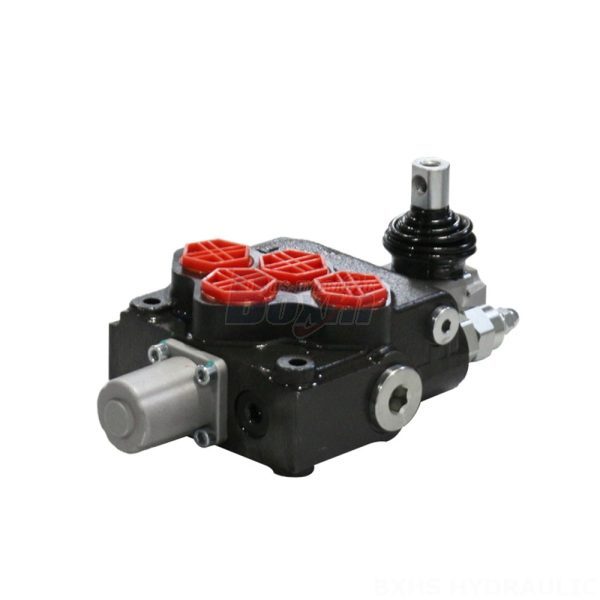

HSSD11 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

75 L/min (19.6 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

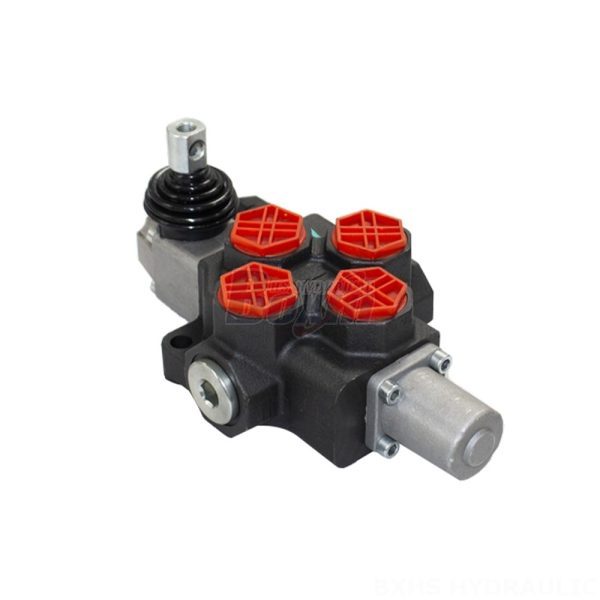

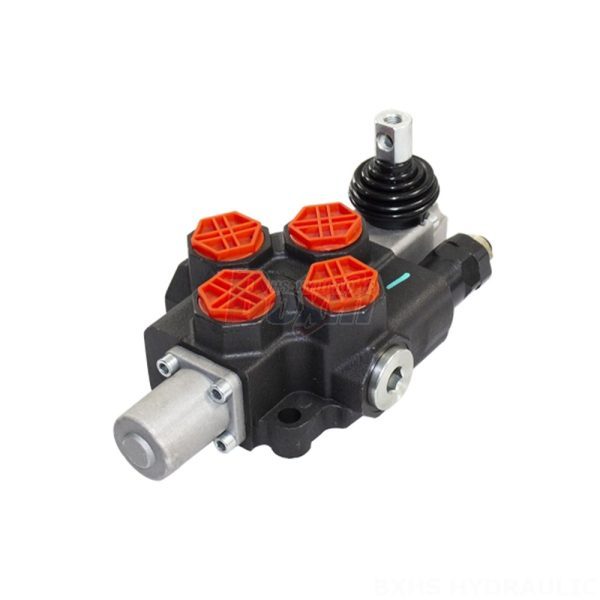

HSSD14 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

Only one sections

Rustproof Level

Neutral salt spray test, 48hours

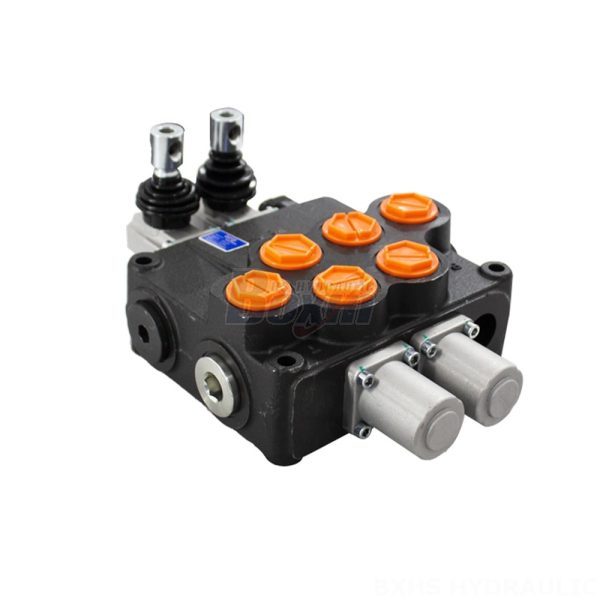

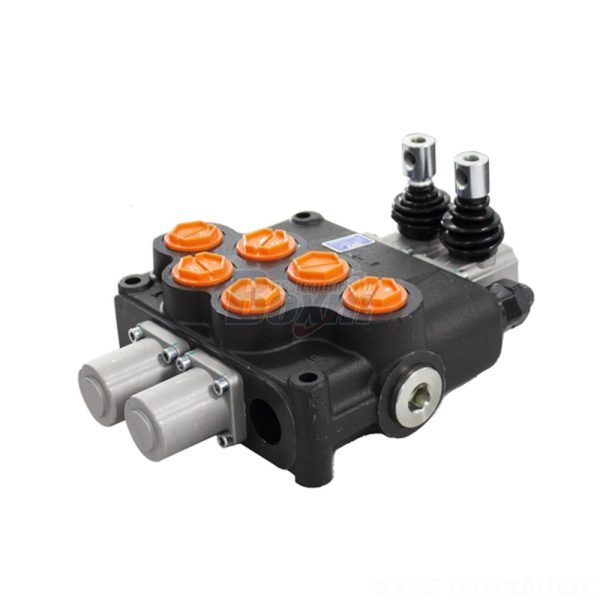

HSSD18 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

160 L/min (42 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-4 sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD4 Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

Only one sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD4R Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

Only one sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD5 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

250 bar (25 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD5 Solenoid Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

45 L/min (12 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD8 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

HSSD8 Solenoid Directional Control Valve

In stock

Control Method

solenoid

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

315 bar (31.5 MPa)

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Valve Structure

Sectional Valve

Valve Surface

Phosphating treating

Valve Sections

1-12 Sections

Rustproof Level

Neutral salt spray test, 48hours

P120 Directional Control Valve

In stock

Model No.

P120 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P120 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Cable Directional Control Valve

In stock

Control Method

cable

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Directional Control Valve

In stock

Model No.

P40 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Electro-hydraulic Directional Control Valve

In stock

Control Method

electro-hydraulic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

P40 Electro-pneumatic Directional Control Valve

In stock

Control Method

electro-pneumatic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours
