We are a global manufacturer of high-quality hydraulic products, specializing in the production of monoblock directional valves. Our SD18 Series, featuring the Monoblock Directional Valve 42.2 GPM 1 Spool Pneumatic SD18 935, is a robust and reliable solution for various applications including material handling, construction, agriculture and industrial vehicles. This pneumatic, 1 spool, monoblock valve boasts a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi). Suitable for Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi/Mini Excavators, Skid Steer Loaders, and Compact Wheel Loaders. We offer manufacturing, OEM (original equipment manufacturing), ODM (original design manufacturing), custom design, and wholesale options. We are actively seeking distributors, wholesalers, dealers, and trading partners globally. Partner with us for high-quality, reliable hydraulic valves—factory direct supply, factory wholesale prices, and customizable solutions to meet your specific needs. Contact us today to explore collaboration opportunities!

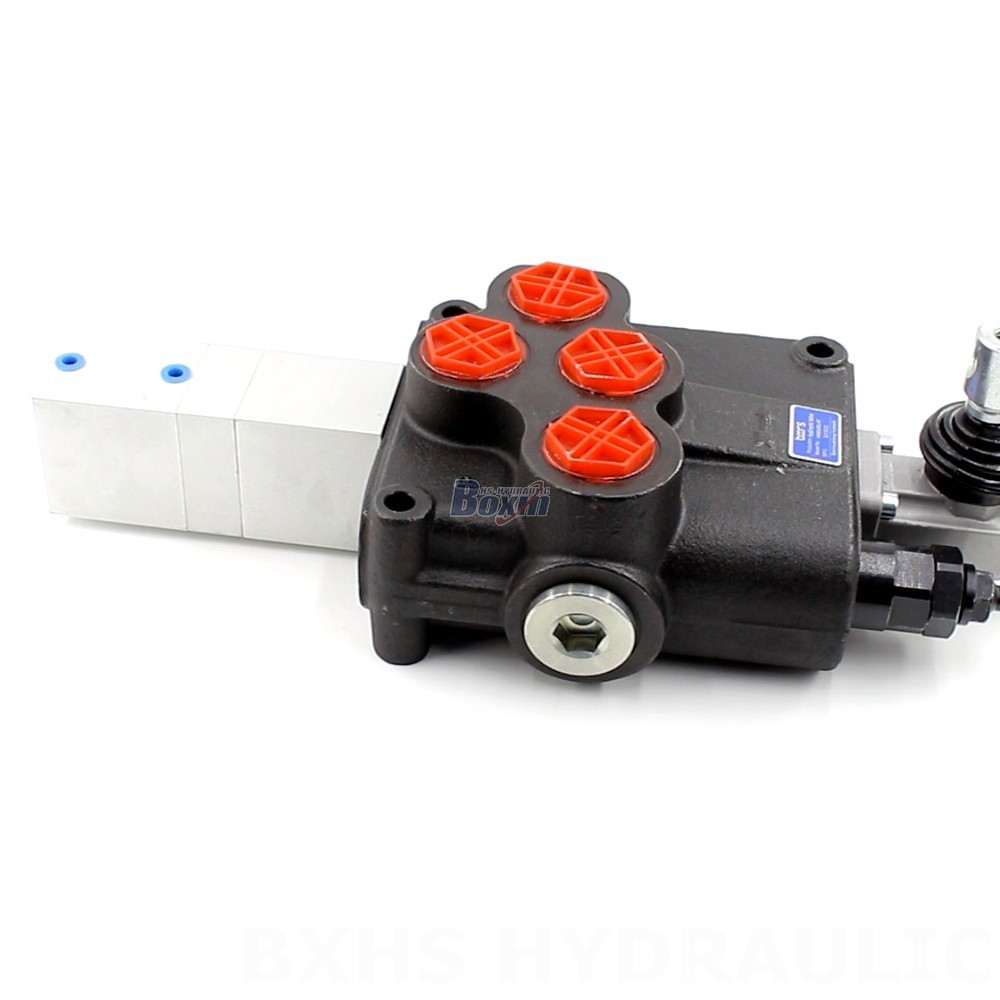

Monoblock Directional Valve 42.2 GPM 1 Spool Pneumatic SD18 – Manufacturing, OEM, Private Label, Custom & Wholesale
Hot Sale Monoblock Directional Valve (SD18 Series) with 42.2 GPM flow rate and 4600 PSI pressure, ideal for construction, material handling, and agricultural applications. Factory direct supply, OEM/ODM available. Wholesale inquiries welcome.
in stock
5-10 days
not in stock
25-30 days
24/7 Support
Unlimited help desk
the warranty
12-month warranty
Weight | 14.90 kg |
---|---|
Dimensions | 27 × 44 × 16 cm |
Control Method |
pneumatic |
Section |
1 Section |
Structure Type |
Monoblock valve |
Rated Flow |
160 L/min (42.2 US gpm) |
Max Pressure |
315 bar (31.5 MPa) |
Spool |
1 Spool |
Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
Product model |
SD18 Pneumatic |
Description
Related products
P40/P80/P120 Directional Control Valve
In stock
Flow |
40~120 L/min |
---|---|
Number of spools |
1~7 sections |
Relief valve set pressure |
100~250 bar |
Control type |
manual, cable, solenoid, pneumatic, electro-hydraulic |
Spool type |
3 positions,double acting, 3 positions.double acting.A&B open, 3 positions,double actingA open.B blocked, 3 positions, double actingA blocked.B open, 3 positions,singleacting in A.A open, 4 positions,doubleacting with 4th floatingposition |
Spool returning type |
3 postions,springreturn, 3 postions,springreturn, detent in a and b, 3 postions,spring return,detent in a, 3 postions,spring return,detent in b, 4 positions.spring return,detent in 4 th position, 4 positions.detent in all 4 positions, 3 positions.detent in 0,a & b, 2 positions(0.b),springreturn, 2 positions(0,a).springreturn |
Port size |
G1/4, G3/8, G1/2, G3/4, G1, M16X1.5, M18X1.5, M20X1.5, M22X1.5, M27X2, 5/8-12UNF, 3/4-16UNF, 7/8-14UNF, 1-12UNF, 11/8-12UNF, NPT3/8, NPT1/2, NPT3/4, NPT1 |
P40 Solenoid Directional Control Valve
In stock
Control Method |
solenoid |
---|---|
Presure Medium |
Mineral oil based hydraulic oil |
Nominal Flow |
40 L/min (10.5 gpm) |
Viscosity Range |
12 CST-400 CST |
Operating Pressure |
Maximum 250 bar at P Port |
Internal Leakage |
15 cc/min at 160 bar, 50℃ |
Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
Spool Stroke |
±6mm |
Valve Structure |
Monoblock Valve |
Valve Surface |
Phosphating treating |
Valve Sections |
1-7 sections |
Rustproof Level |
Neutral salt spray test, 48hours |
P120 Manual Directional Control Valve
In stock
Control Method |
manual |
---|---|
Presure Medium |
Mineral oil based hydraulic oil |
Nominal Flow |
120 L/min (31.5 gpm) |
Viscosity Range |
12 CST-400 CST |
Operating Pressure |
Maximum 250 bar at P Port |
Internal Leakage |
15 cc/min at 160 bar, 50℃ |
Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
Spool Stroke |
±6mm |
Valve Structure |
Monoblock Valve |
Valve Surface |
Phosphating treating |
Valve Sections |
1-7 sections |
Rustproof Level |
Neutral salt spray test, 48hours |
DCV40 Electro-hydraulic Directional Control Valve
In stock
Control Method |
electro-hydraulic |
---|---|
Presure Medium |
Mineral oil based hydraulic oil |
Nominal Flow |
40 L/min |
Viscosity Range |
12 CST-400 CST |
Operating Pressure |
350 bar (35 MPa) |
Internal Leakage |
15 cc/min at 160 bar, 50℃ |
Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
Valve Structure |
Monoblock Valve |
Valve Surface |
Phosphating treating |
Valve Sections |
1-6 sections |
Rustproof Level |
Neutral salt spray test, 48hours |
