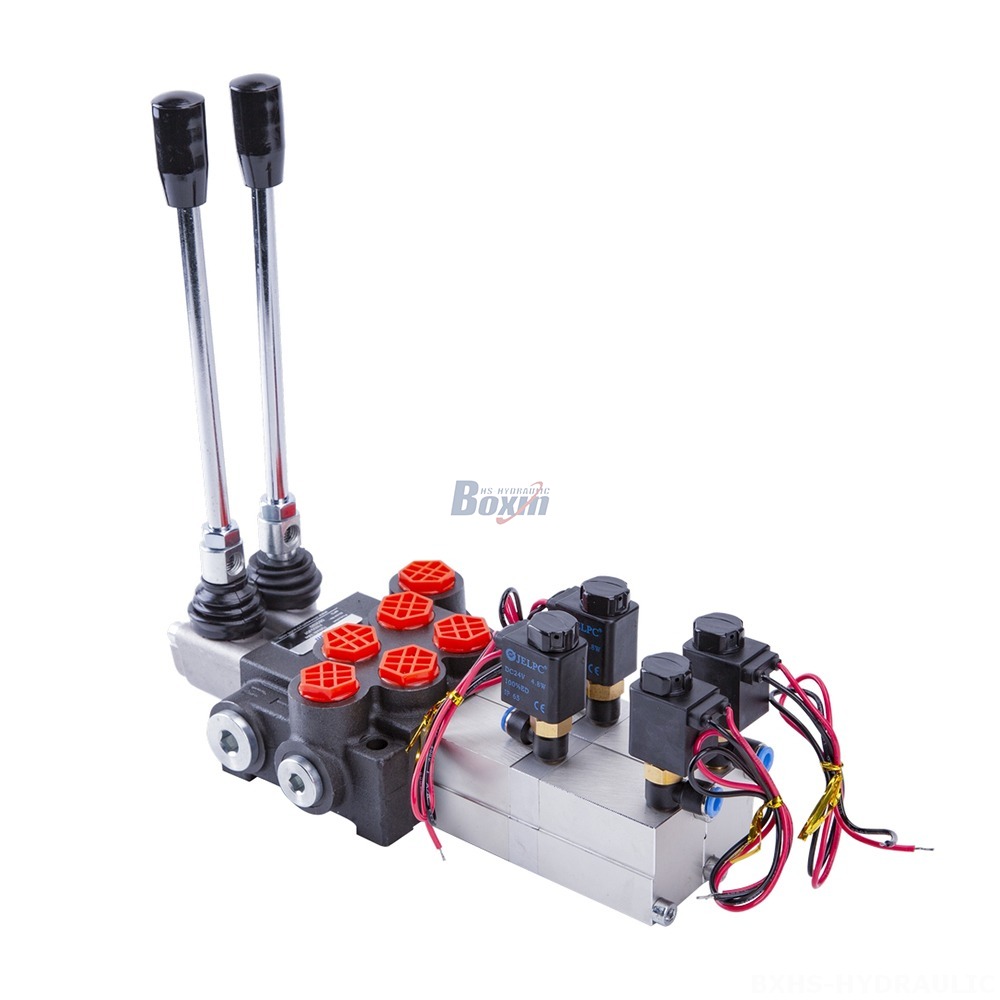

P40 Electro-pneumatic Directional Control Valve

Achieve precise control in electro-pneumatic systems with the P40 Electro-pneumatic Directional Control Valve. This economical monoblock valve features a compact structure and stable performance. With a parallel circuit type and 1-7 sections, it offers versatility for various applications. Experience reliable and affordable control with the P40 valve.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Control Method

electro-pneumatic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P40 Electro-pneumatic Directional Control Valve – the perfect solution for precise control in electro-pneumatic systems. The P40 series comprises economical monoblock valves known for their compact structure and stable performance, making them suitable for a wide range of applications.

Featuring a parallel circuit type, the P40 valve seamlessly integrates into electro-pneumatic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections offers flexibility to meet specific system requirements.

The P40 valve offers exceptional value with its low price, without compromising on quality or versatility. Whether you’re a small business or a large-scale manufacturer, the P40 valve provides reliable support, helping you enhance productivity while keeping costs in check.

Experience the reliability and performance of the P40 Electro-pneumatic Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With its ability to withstand demanding conditions, the P40 valve ensures consistent performance and durability.

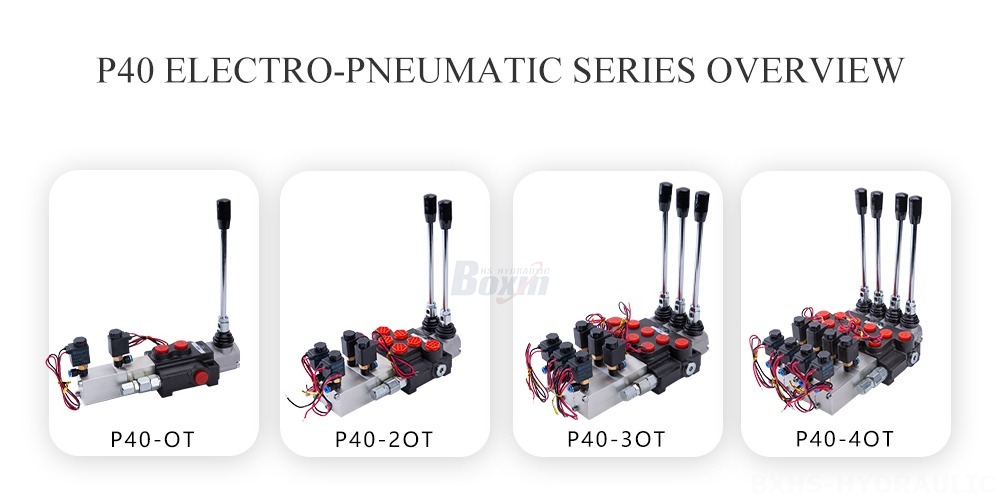

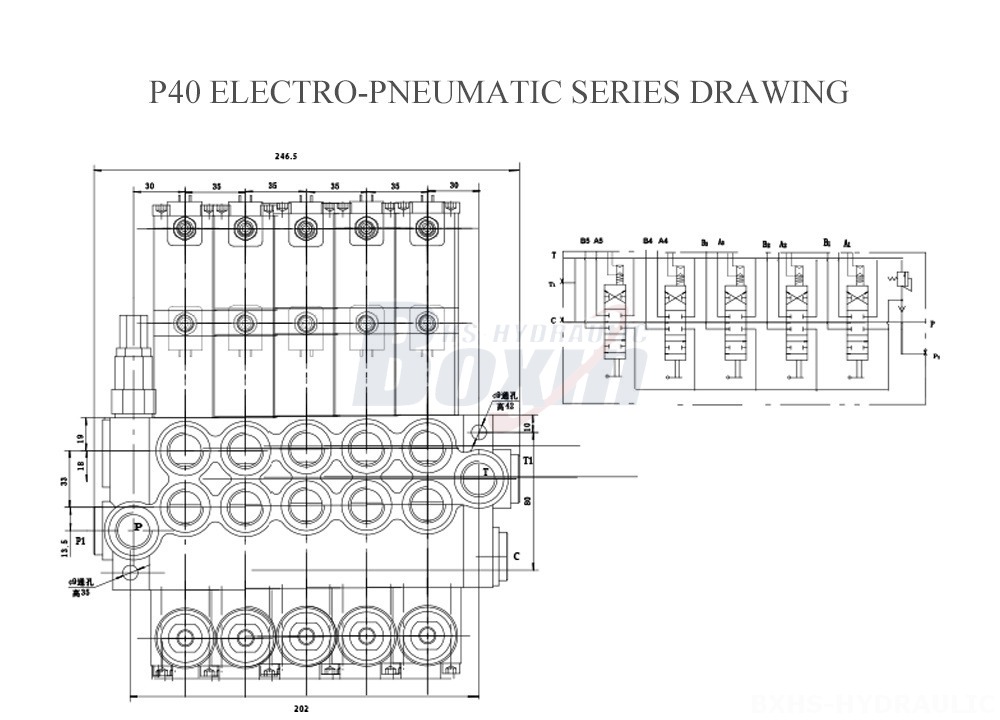

P40-Electro-pneumatic-Series-Drawing P40-Electro-pneumatic-Series-Overview
