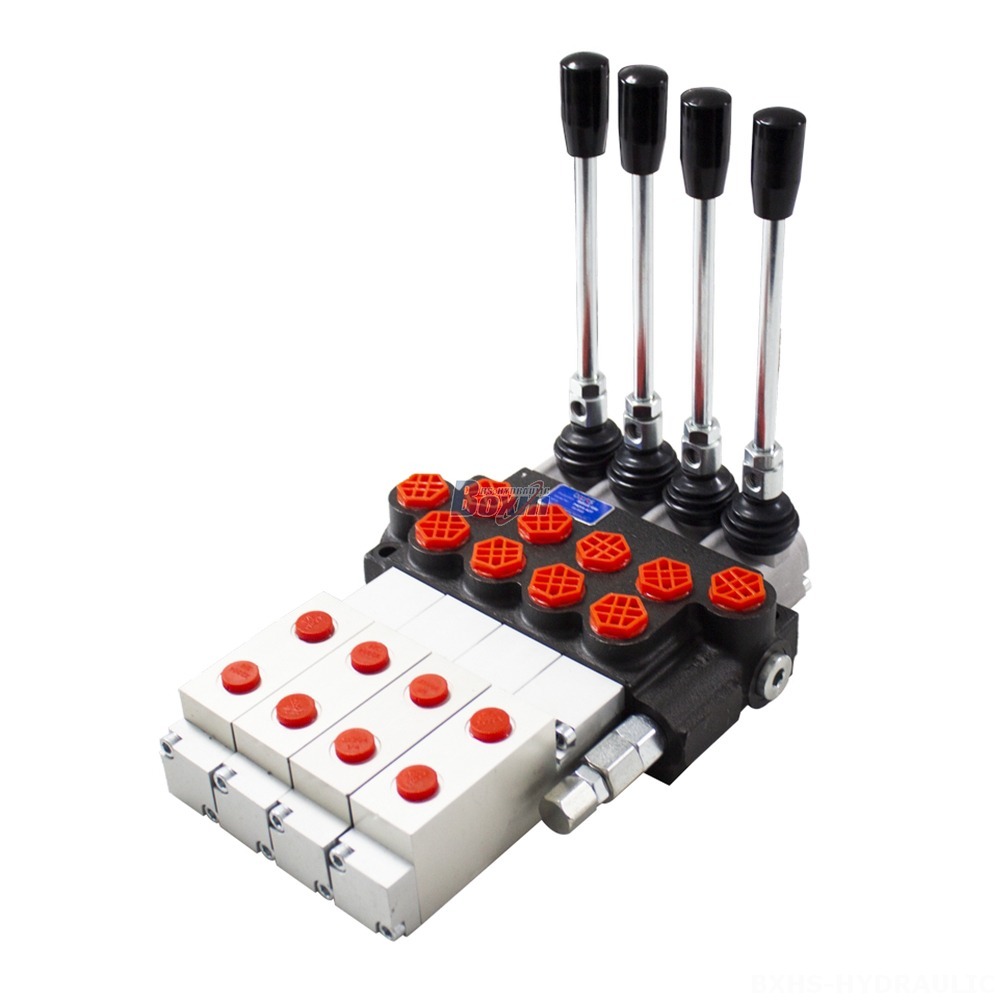

P40 Hydraulic Directional Control Valve

The P40 Hydraulic Directional Control Valve: An economical and versatile solution for hydraulic systems. Compact and stable, with parallel circuitry and 1-7 sections. Affordable yet high-performing, ideal for various applications. Upgrade your control with the P40 valve.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Control Method

hydraulic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P40 Hydraulic Directional Control Valve – your ultimate solution for efficient and reliable control in hydraulic systems. The P40 series offers a cost-effective and versatile option for a wide range of applications, thanks to its compact structure and stable performance.

Designed with an emphasis on affordability and adaptability, the P40 series is the go-to choice for those seeking a reliable directional control valve. Its parallel circuit type ensures seamless integration into diverse hydraulic systems, making it suitable for applications in industries such as agriculture, construction, and manufacturing.

The monoblock structure of the P40 valve further enhances its ease of installation and maintenance. With options ranging from 1 to 7 sections, this valve provides flexibility in system configuration, allowing you to precisely tailor it to your specific requirements. Whether you need to control a single hydraulic actuator or multiple components, the P40 valve effortlessly accommodates your needs.

One of the most enticing features of the P40 valve is its remarkable price-performance ratio. Despite its low price,  this valve does not compromise on quality or reliability. Whether you are a small-scale operation or a large manufacturer, the P40 valve offers exceptional support, helping you enhance productivity while keeping costs in check.

The compact design and outstanding performance of the P40 valve position it as a top contender in the industry. It not only adapts to various application scenarios but also operates reliably under demanding conditions. Whether it’s a harsh working environment or high-pressure conditions, the P40 valve delivers consistent performance and remarkable durability.

P40-Hydraulic-Series-Drawing P40-Hydraulic-Series-Overview
