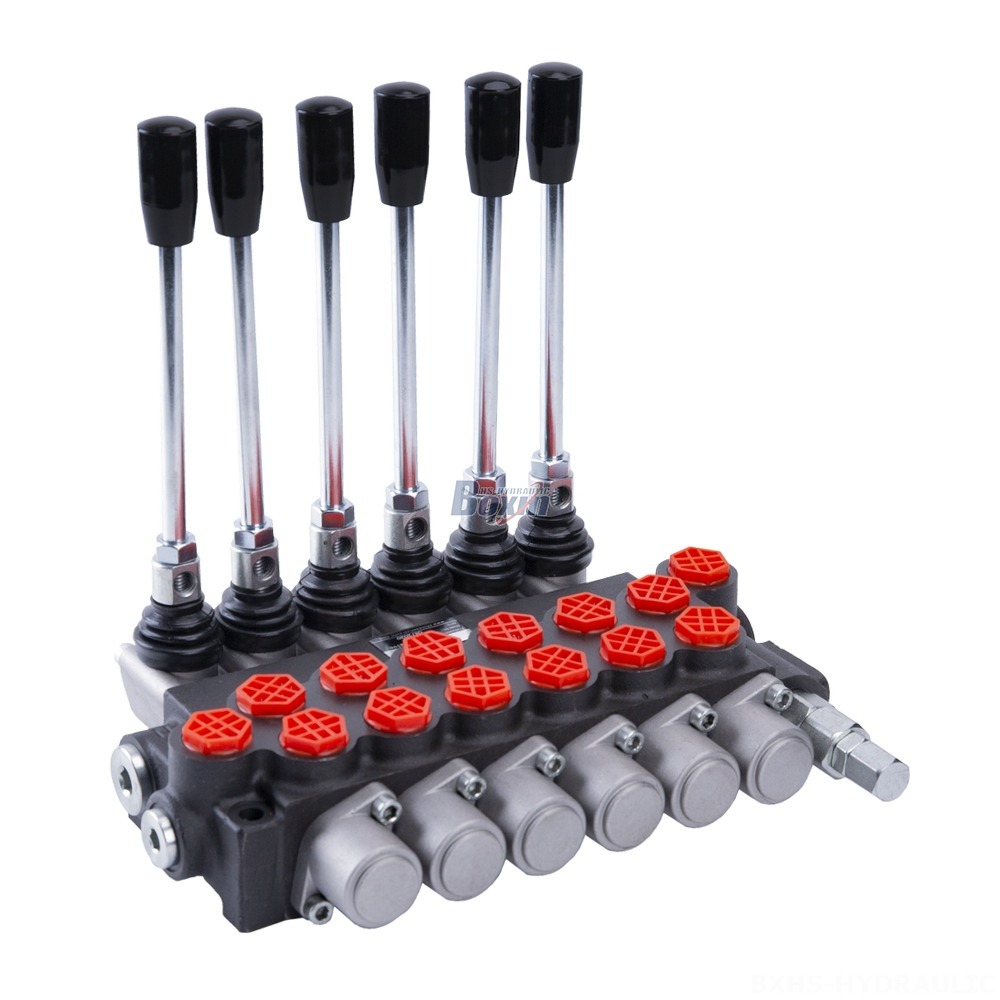

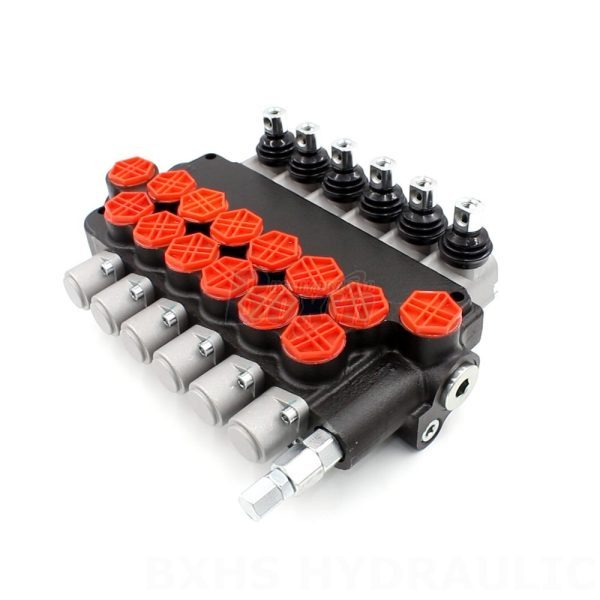

P40 Manual Directional Control Valve

Achieve precise control in various applications with the P40 Manual Directional Control Valve. This economical monoblock valve offers a compact structure and stable performance. With a parallel circuit type and options for 1-7 sections, it provides versatility for optimal system customization. Experience reliable and affordable control with the P40 valve.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P40 Manual Directional Control Valve – the reliable solution for precise control in various applications. The P40 series comprises economical monoblock valves known for their compact structure and stable performance.

Featuring a parallel circuit type, the P40 valve seamlessly integrates into hydraulic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections offers flexibility to meet specific system requirements.

The P40 valve offers exceptional value with its low price, without compromising on quality or versatility. Whether you’re a small business or a large-scale manufacturer, the P40 valve provides reliable support, helping you enhance productivity while keeping costs in check.

Experience the reliability and performance of the P40 Manual Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With its ability to withstand demanding conditions, the P40 valve ensures consistent performance and durability.

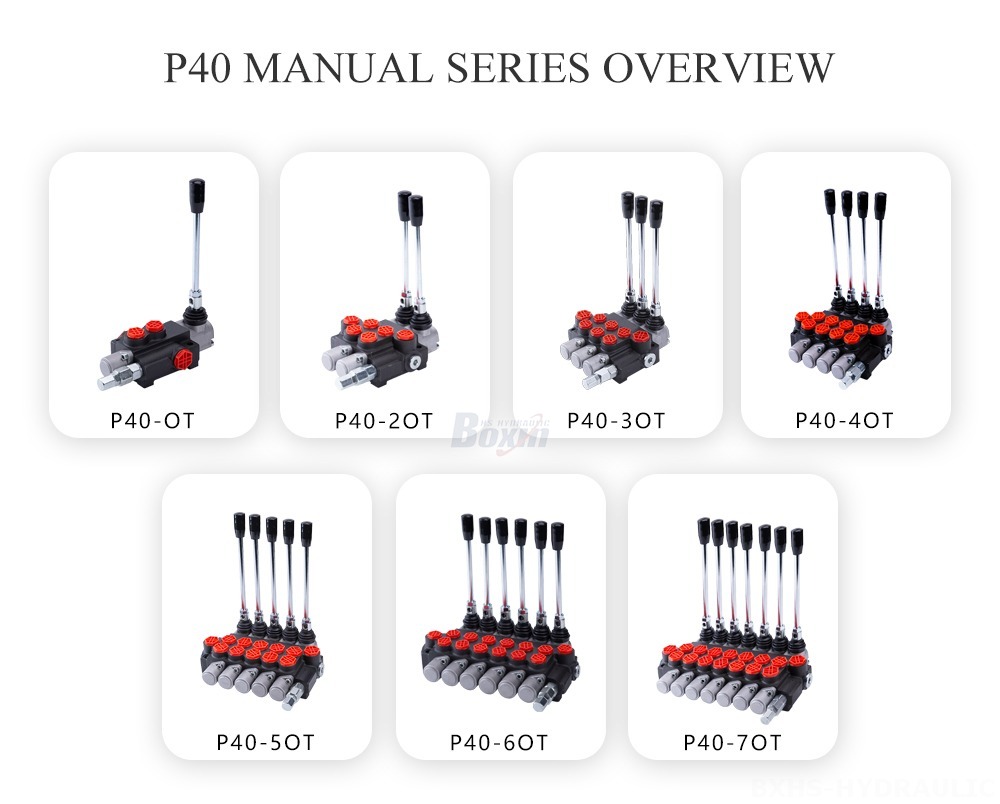

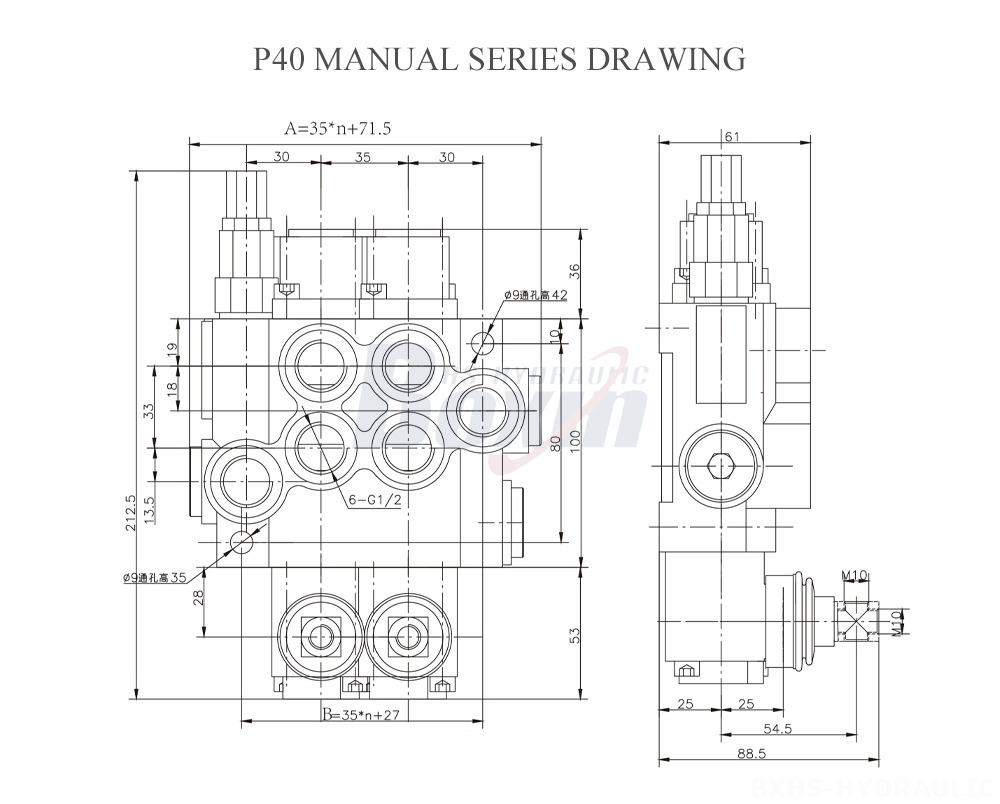

P40-Manual-Series-Drawing P40-Manual-Series-Overview
