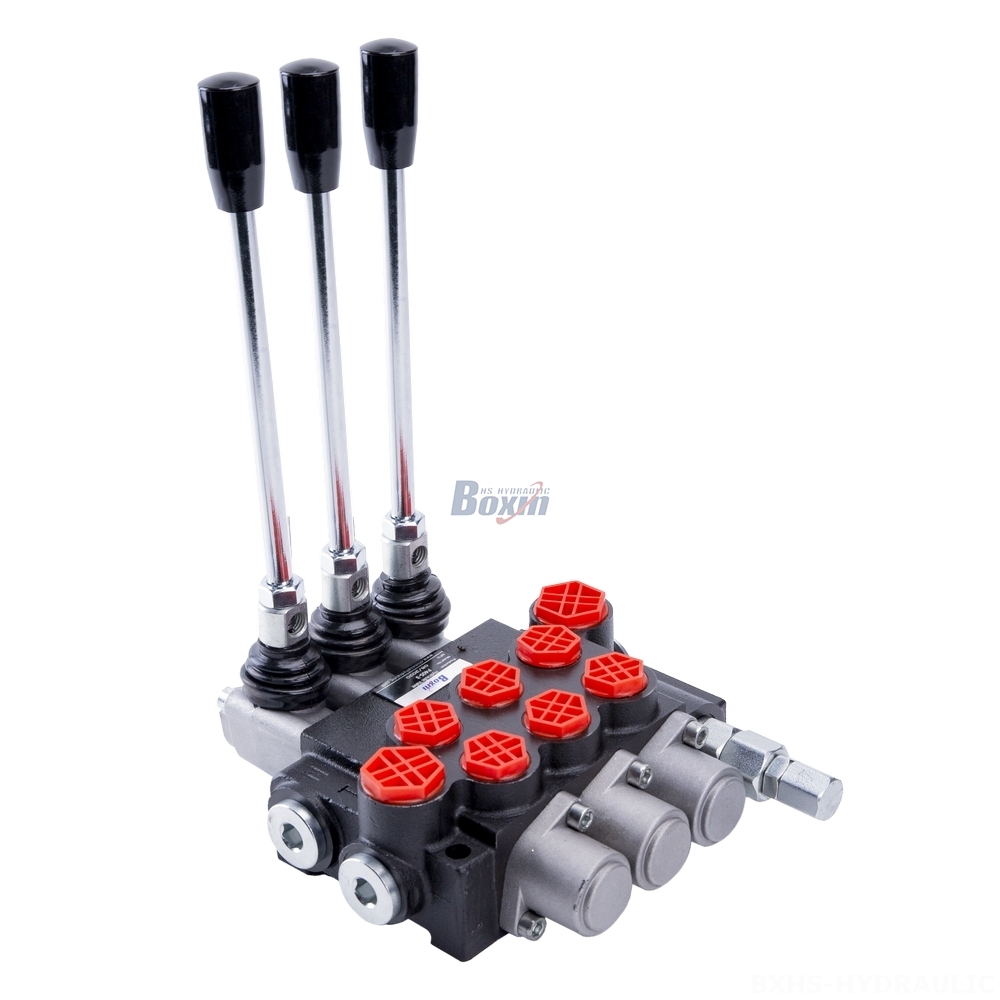

P40/P80/P120 series Directional Control Valve are economical monoblock directional control valves with various applications and features of compact structure, stable performance, low price and high universality.
Control type: manual, cable, solenoid,pneumatic,electro-hydraulic, etc.
Circuit type: parallel.
Monoblock structure,1-7 sections.
5-10 days
25-30 days
Unlimited help desk
12-month warranty
| Flow |
40~120 L/min |
|---|---|
| Number of spools |
1~7 sections |
| Relief valve set pressure |
100~250 bar |
| Control type |
manual, cable, solenoid, pneumatic, electro-hydraulic |
| Spool type |
3 positions,double acting, 3 positions.double acting.A&B open, 3 positions,double actingA open.B blocked, 3 positions, double actingA blocked.B open, 3 positions,singleacting in A.A open, 4 positions,doubleacting with 4th floatingposition |
| Spool returning type |
3 postions,springreturn, 3 postions,springreturn, detent in a and b, 3 postions,spring return,detent in a, 3 postions,spring return,detent in b, 4 positions.spring return,detent in 4 th position, 4 positions.detent in all 4 positions, 3 positions.detent in 0,a & b, 2 positions(0.b),springreturn, 2 positions(0,a).springreturn |
| Port size |
G1/4, G3/8, G1/2, G3/4, G1, M16X1.5, M18X1.5, M20X1.5, M22X1.5, M27X2, 5/8-12UNF, 3/4-16UNF, 7/8-14UNF, 1-12UNF, 11/8-12UNF, NPT3/8, NPT1/2, NPT3/4, NPT1 |
The P40/P80/P120 series Directional Control Valve is a versatile and affordable monoblock valve with a compact structure, stable performance, and high universality. This valve is suitable for various applications and comes in a range of control types including manual, cable, solenoid, pneumatic, and electro-hydraulic. Its circuit type is parallel, and it has a monoblock structure with 1-7 sections, making it a flexible and convenient option for hydraulic systems.
In stock
| Control Method |
electro-pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

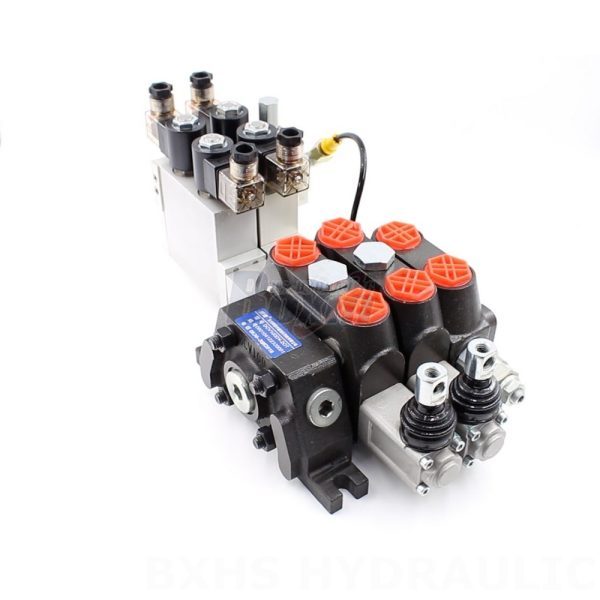

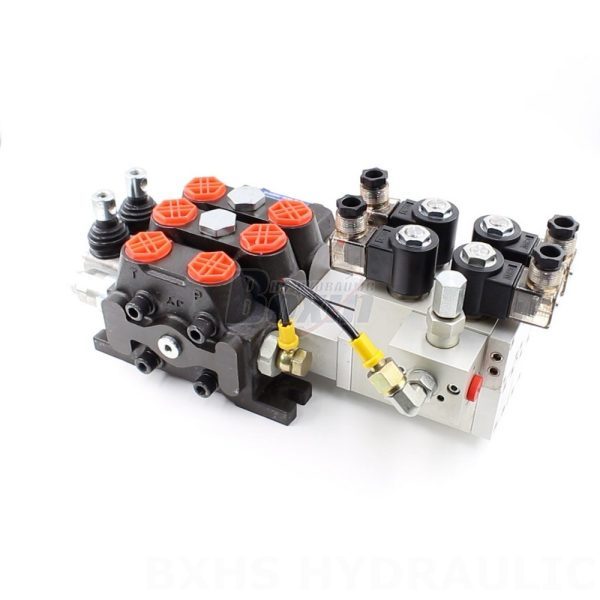

In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
In stock
| Control Method |
pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-6 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
20 L/min |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-6 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
