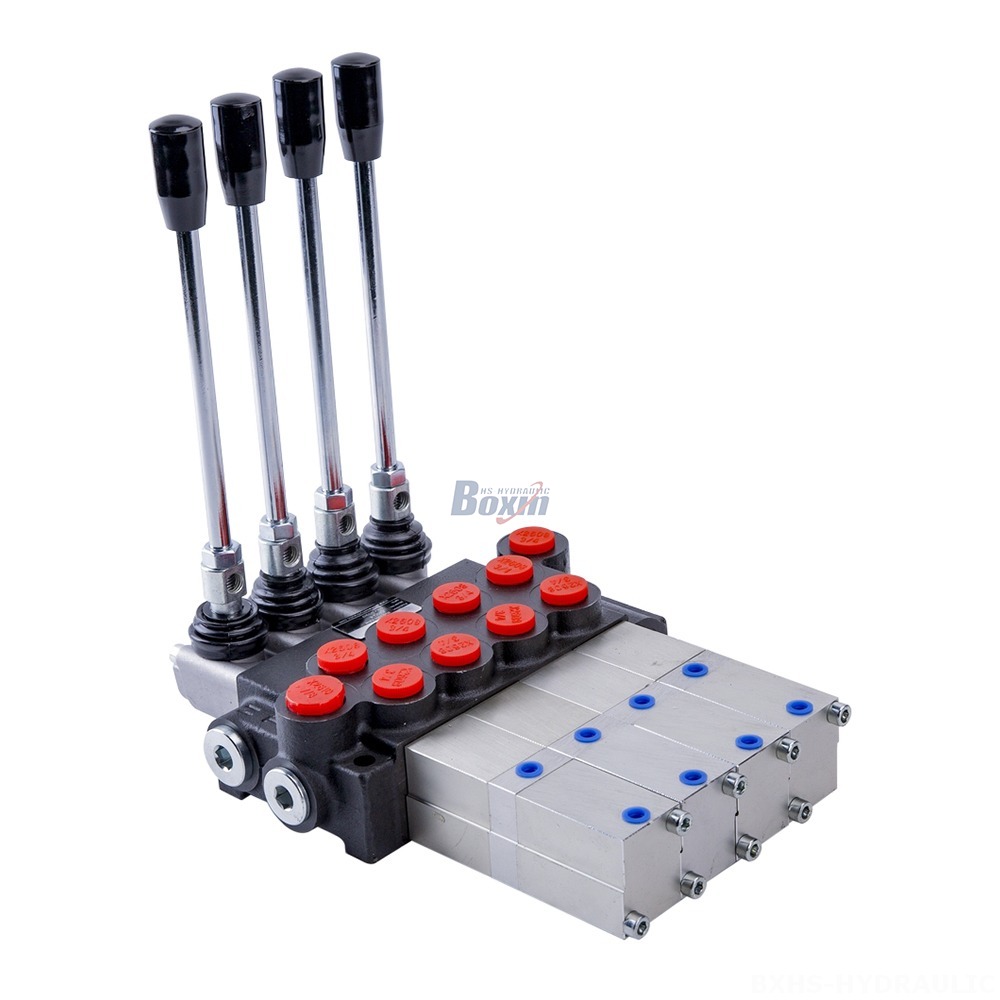

P40 Pneumatic Directional Control Valve

Achieve precise control in pneumatic systems with the P40 Pneumatic Directional Control Valve. This economical monoblock valve features a compact structure and stable performance. With a parallel circuit type and 1-7 sections, it offers versatility for various applications. Experience reliable and affordable control with the P40 valve.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Control Method

pneumatic

Model No.

P40 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P40 Pneumatic Directional Control Valve – an affordable and versatile solution for precise control in pneumatic systems. The P40 series comprises economical monoblock valves known for their compact structure and stable performance, making them suitable for a wide range of applications.

With a parallel circuit type, the P40 valve seamlessly integrates into pneumatic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections offers flexibility to meet specific system requirements.

The P40 valve offers exceptional value with its low price, without compromising on quality or versatility. Whether you’re a small business or a large-scale manufacturer, the P40 valve provides reliable support, helping you enhance productivity while keeping costs in check.

Experience the reliability and performance of the P40 Pneumatic Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With its ability to withstand demanding conditions, the P40 valve ensures consistent performance and durability.

Upgrade your pneumatic systems with the P40 Pneumatic Directional Control Valve and unlock precise control at an affordable price. Don’t miss out on this opportunity to optimize your operations with a reliable and versatile valve solution.

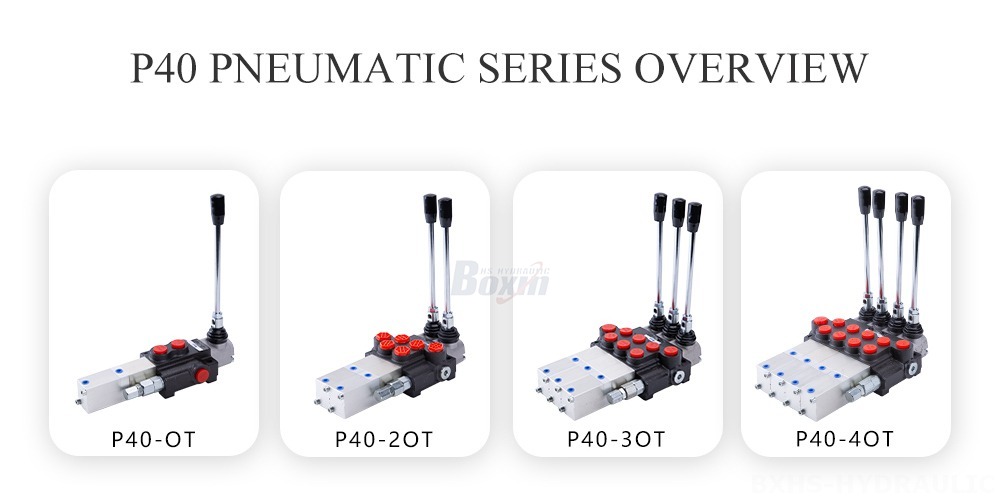

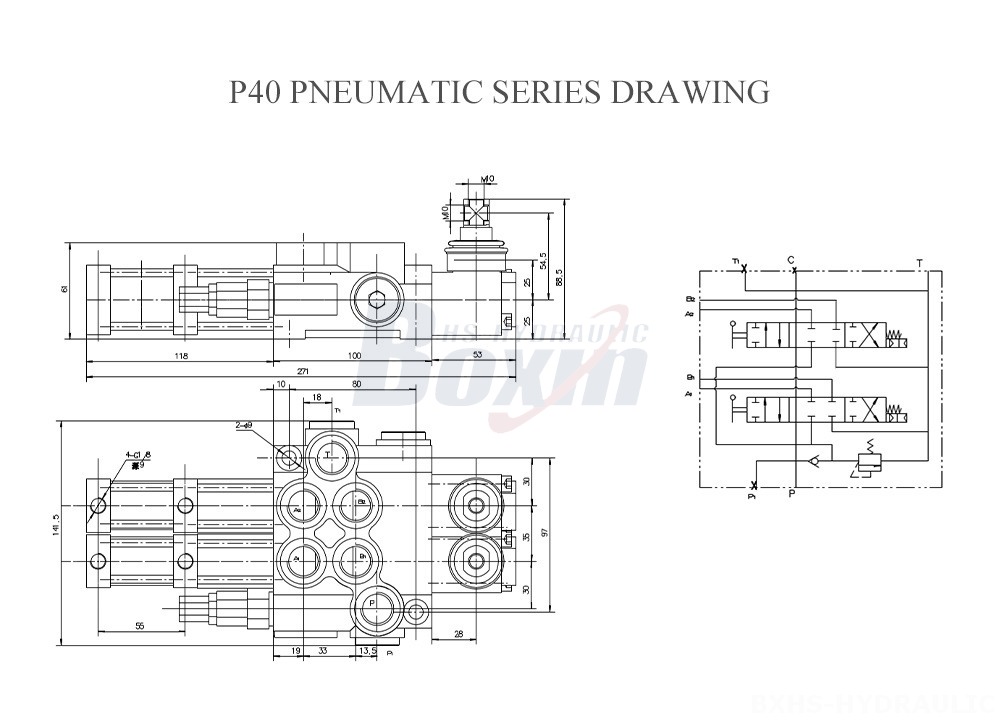

P40-Pneumatic-Series-Drawing P40-Pneumatic-SERIES-OVERVIEW
