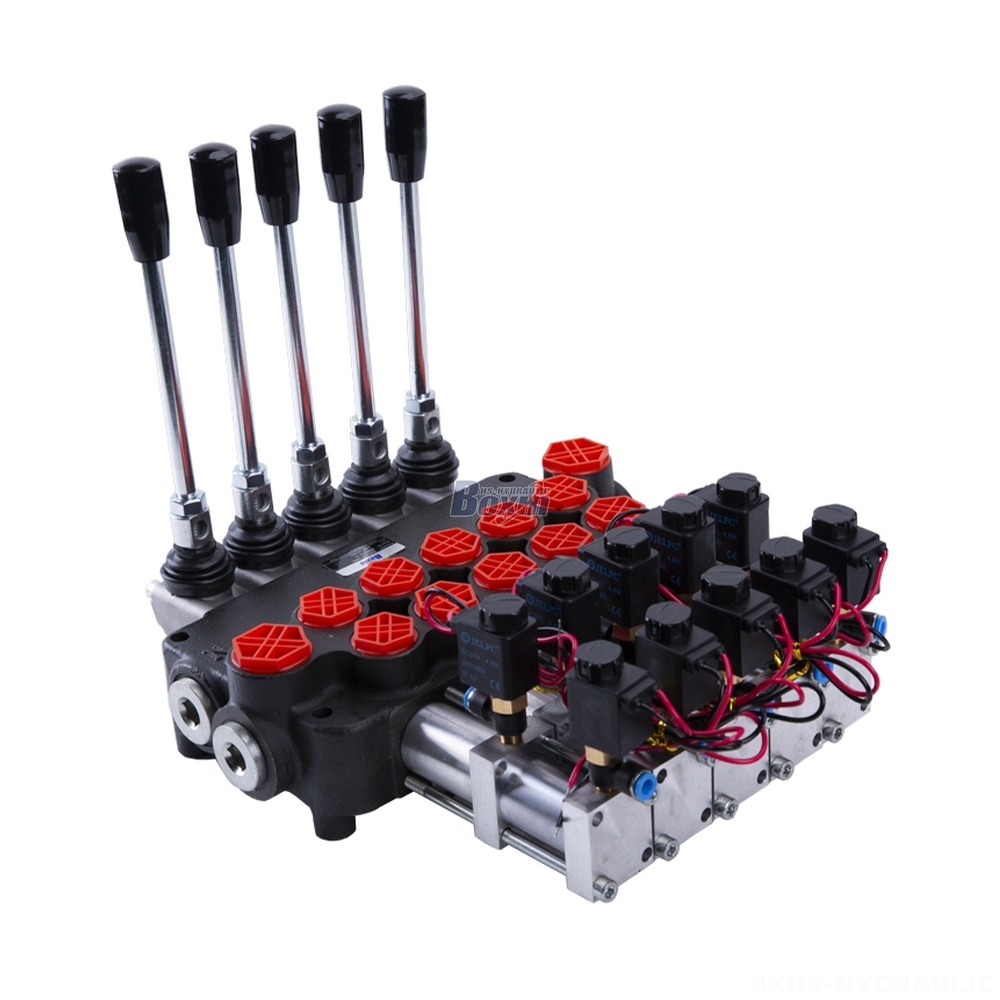

P80 Directional Control Valve

P80 series are economical monoblock directional control valves with various applications and features of compact structure, stable performance.

low price and high universality.

Control type: manual, cable, solenoid,pneumatic,electro-hydraulic, etc.

Circuit type: parallel.

Monoblock structure,1-7 sections.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Model No.

P80 Series Hydraulic Valve

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

80 L/min (21 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Description

Introducing the P80 series, a range of economical monoblock directional control valves that offer versatility and a compact structure. These valves are designed to provide stable performance while remaining cost-effective.

The P80 series is known for its low price and high universality, making it suitable for a wide range of applications. Whether you require manual control, cable operation, solenoid activation, pneumatic control, or electro-hydraulic functionality, these valves can meet your needs.

Featuring a parallel circuit type, the P80 series ensures efficient hydraulic flow control. The monoblock structure adds to its compact design, allowing for easy installation and integration. These valves are available in 1 to 7 sections, providing flexibility to match your specific requirements.

In summary, the P80 series offers an economical solution for directional control applications. With its compact structure, stable performance, and various control options, these valves are a reliable choice for different industries.

P80-Series-Drawing P80-Series-Overview
