All productsShowing 73–90 of 107 results
P120 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
120 L/min (31.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P40 Cable Directional Control Valve
In stock
| Control Method |
cable |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P40 Directional Control Valve
In stock
| Model No. |
P40 Series Hydraulic Valve |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

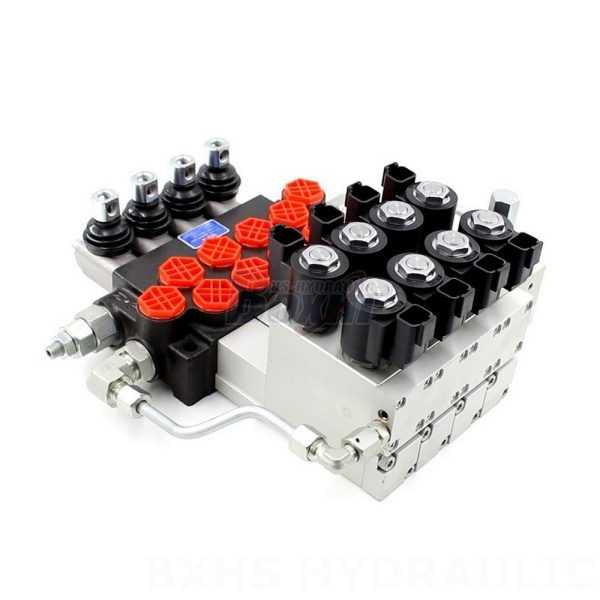

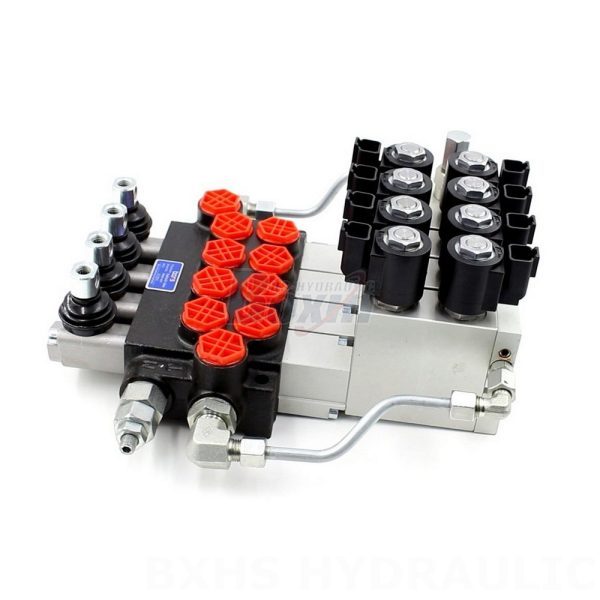

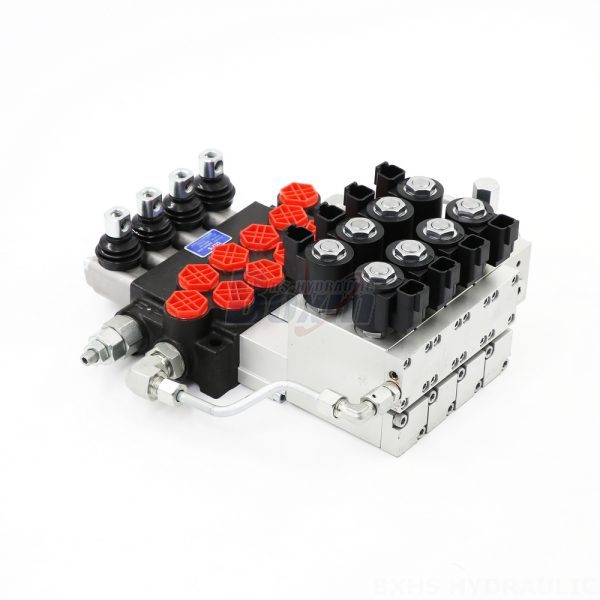

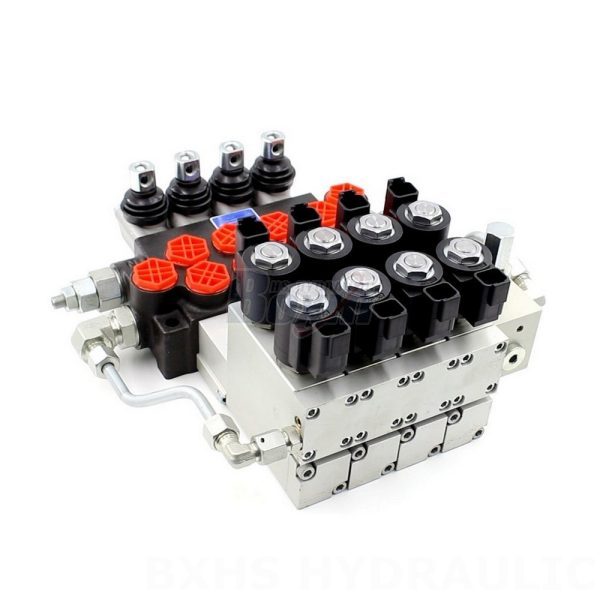

P40 Electro-hydraulic Directional Control Valve
In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P40 Electro-pneumatic Directional Control Valve
In stock
| Control Method |
electro-pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

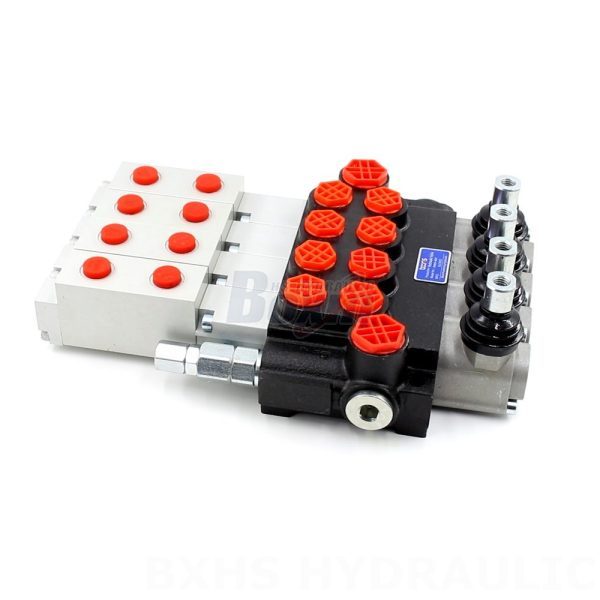

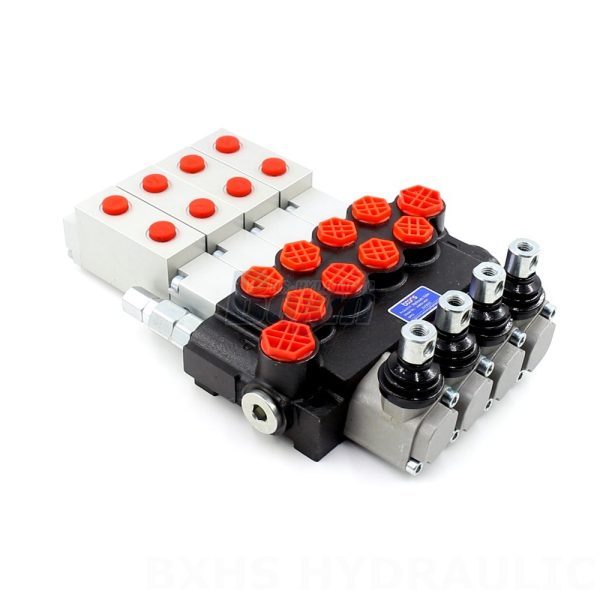

P40 Hydraulic Directional Control Valve
In stock
| Control Method |
hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

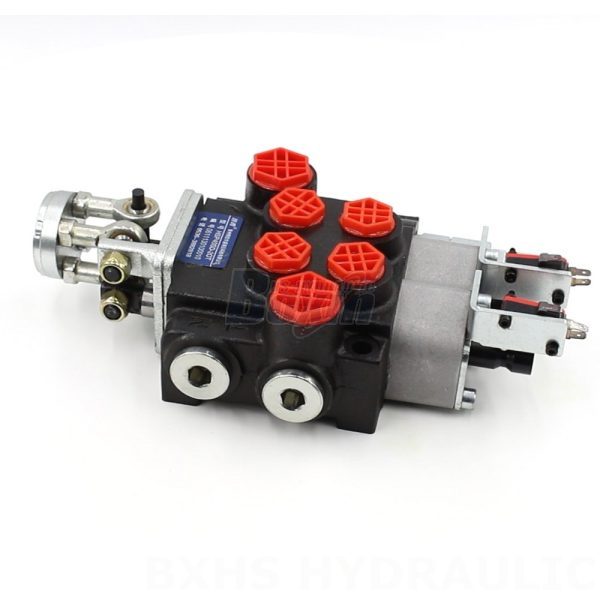

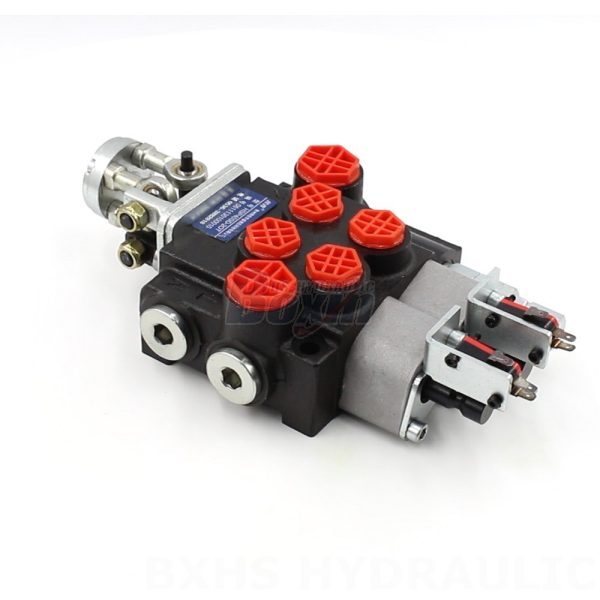

P40 Joystick Directional Control Valve
In stock
| Control Method |
joystick |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

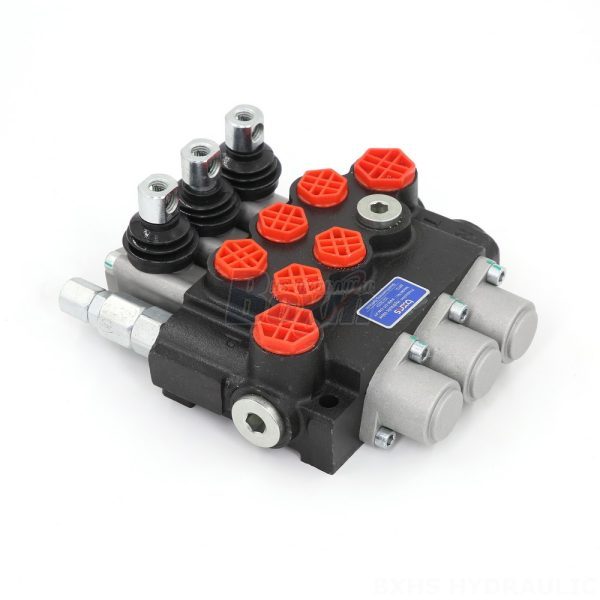

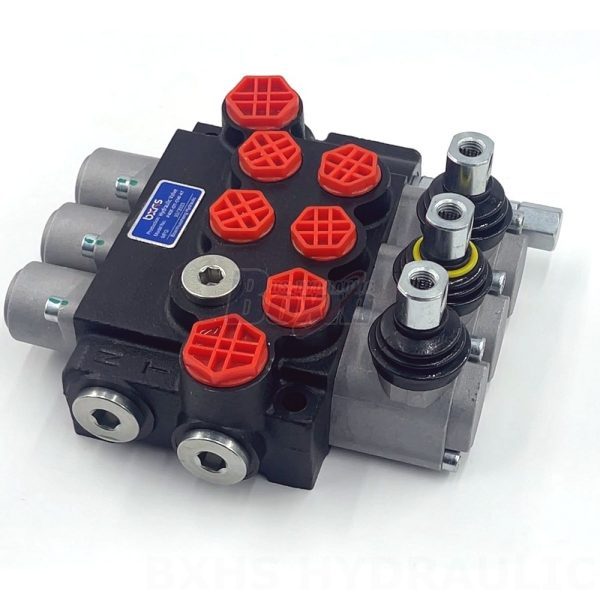

P40 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

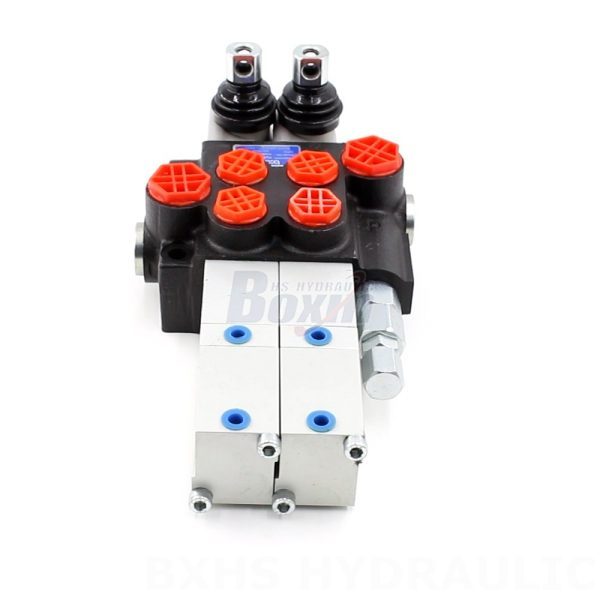

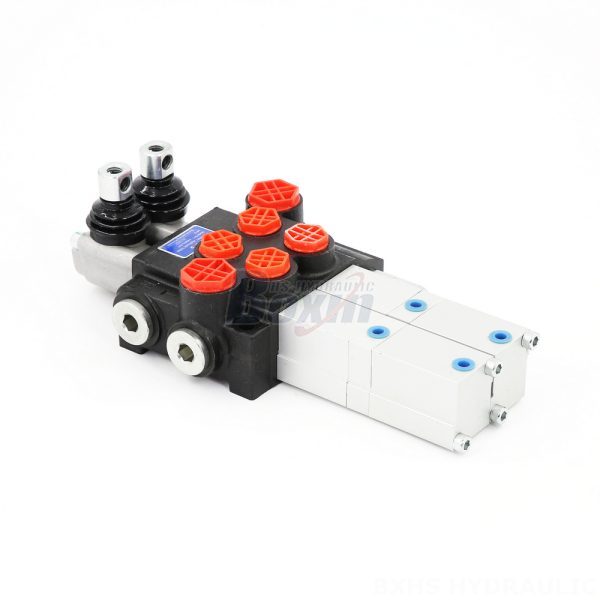

P40 Pneumatic Directional Control Valve
In stock
| Control Method |
pneumatic |
|---|---|
| Model No. |
P40 Series Hydraulic Valve |
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

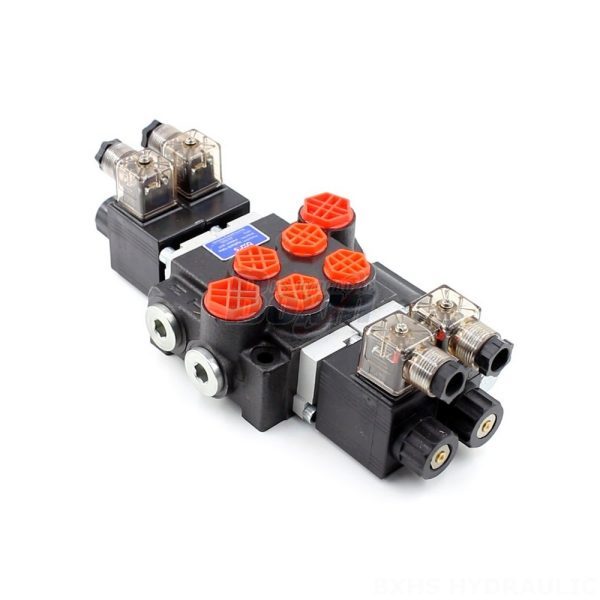

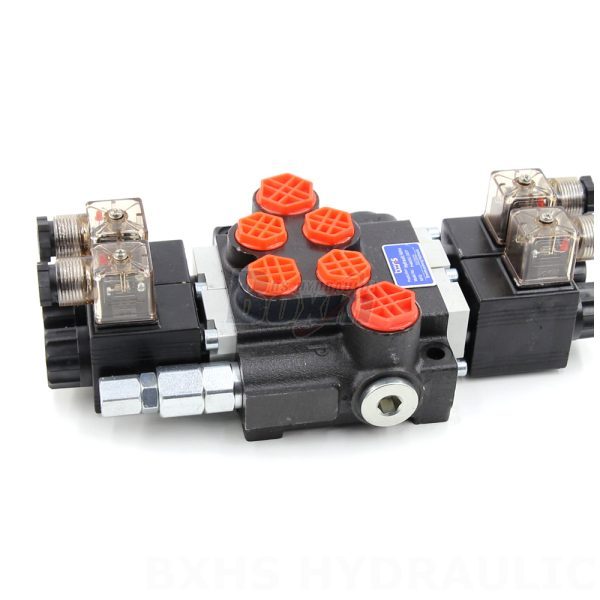

P40 Solenoid Directional Control Valve
In stock
| Control Method |
solenoid |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P40/P80/P120 Directional Control Valve
In stock
| Flow |
40~120 L/min |
|---|---|
| Number of spools |
1~7 sections |
| Relief valve set pressure |
100~250 bar |
| Control type |
manual, cable, solenoid, pneumatic, electro-hydraulic |
| Spool type |
3 positions,double acting, 3 positions.double acting.A&B open, 3 positions,double actingA open.B blocked, 3 positions, double actingA blocked.B open, 3 positions,singleacting in A.A open, 4 positions,doubleacting with 4th floatingposition |
| Spool returning type |
3 postions,springreturn, 3 postions,springreturn, detent in a and b, 3 postions,spring return,detent in a, 3 postions,spring return,detent in b, 4 positions.spring return,detent in 4 th position, 4 positions.detent in all 4 positions, 3 positions.detent in 0,a & b, 2 positions(0.b),springreturn, 2 positions(0,a).springreturn |
| Port size |
G1/4, G3/8, G1/2, G3/4, G1, M16X1.5, M18X1.5, M20X1.5, M22X1.5, M27X2, 5/8-12UNF, 3/4-16UNF, 7/8-14UNF, 1-12UNF, 11/8-12UNF, NPT3/8, NPT1/2, NPT3/4, NPT1 |
P63 Log Splitter Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
65 L/min (17 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
Only one sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
| Kick out set pressure |
70-140 bar (1015-2030 psi) |
P80 Cable Directional Control Valve
In stock
| Control Method |
cable |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P80 Directional Control Valve
In stock
| Model No. |
P80 Series Hydraulic Valve |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P80 Electro-hydraulic Directional Control Valve
In stock
| Control Method |
electro-hydraulic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P80 Electro-pneumatic Directional Control Valve
In stock
| Control Method |
electro-pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P80 Joystick Directional Control Valve
In stock
| Control Method |
joystick |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
