All productsShowing 91–107 of 107 results
P80 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P80 Pneumatic Directional Control Valve
In stock
| Control Method |
pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |

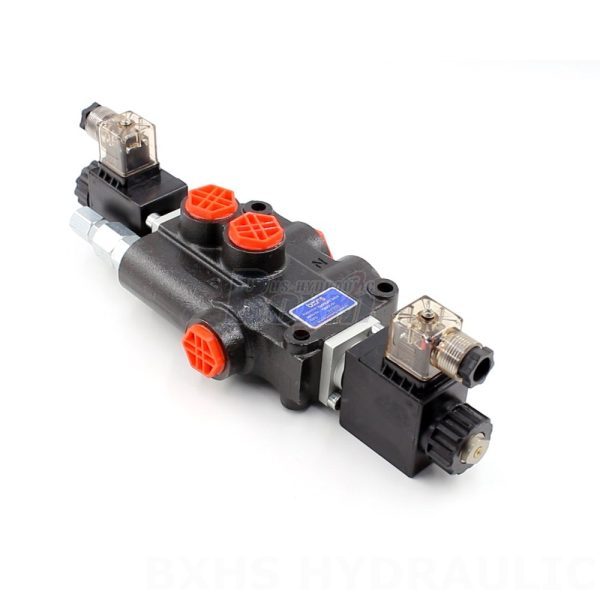

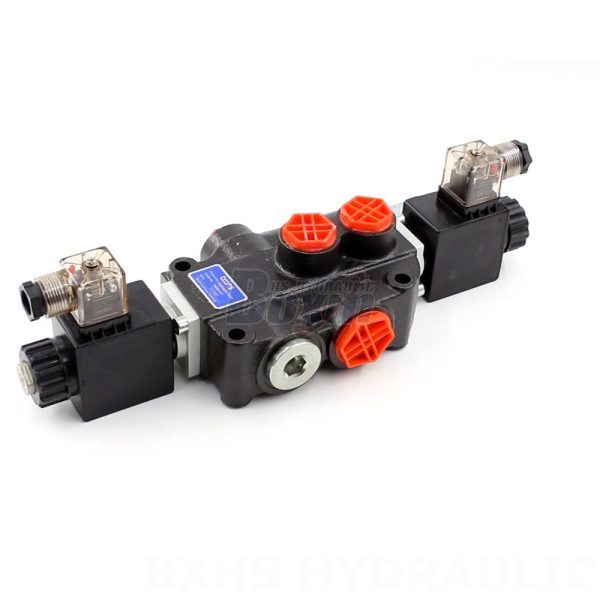

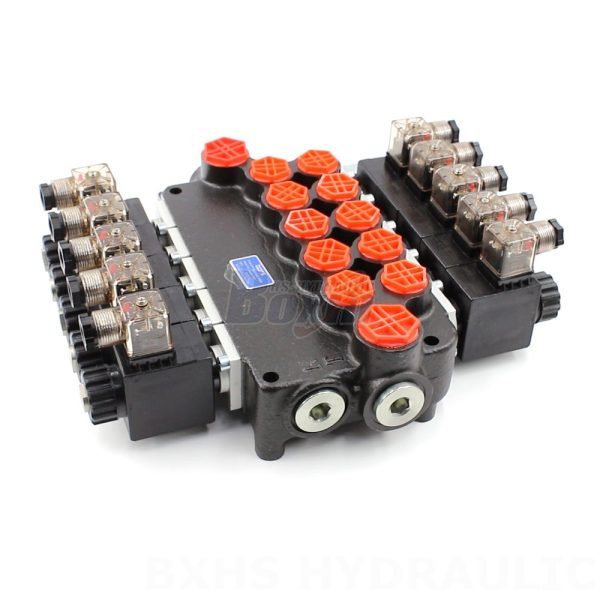

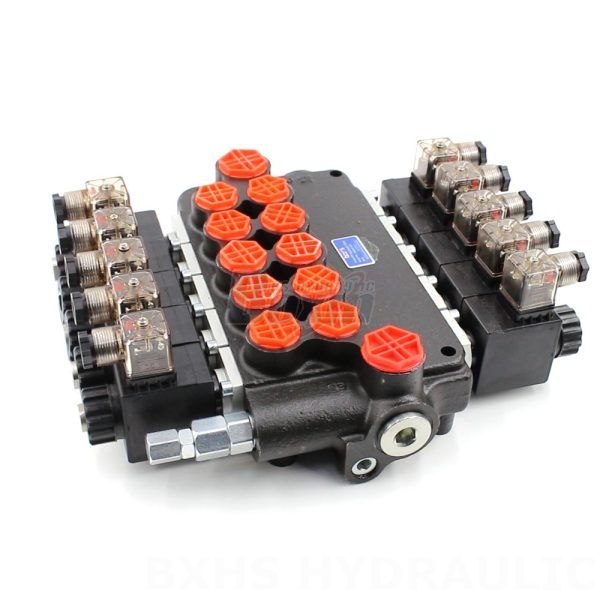

P80 Solenoid Directional Control Valve
In stock
| Control Method |
solenoid |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
80 L/min (21 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
Maximum 250 bar at P Port |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Spool Stroke |
±6mm |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
P81 Log Splitter Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
95 L/min (25 GPM) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
Only one sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
| Kick out set pressure |
70-140 bar (1015-2030 psi) |
Q75 Directional Control Valve
In stock
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
75 L/min (19.6 gpm) |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5100 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
Only one sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5200 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
2 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
RD5300 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
315 bar (31.5 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
3 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
SDS180 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
160 L/min (42 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
SDS380 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
380 L/min (100 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
350 bar (35 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Sectional Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-12 Sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
SDY20 Snow Removal Truck Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
250 bar (25 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
TR55 Directional Control Valve
In stock
| Valve Structure |
Monoblock Valve |
|---|---|
| Control Method |
cable, electro-hydraulic, electro-pneumatic, joystick, manual, pneumatic, solenoid |
| Nominal Flow |
45 L/min (12 gpm) |
| Operating Pressure |
315 bar (31.5 MPa) |
| Viscosity Range |
12 CST-400 CST |
| Operating Range |
15-75 mm²/s (15-75 CST) |
| Ambient Temp |
-40°C to +60°C (-40°F to +140°F) |
| Valve Sections |
1-7 sections |
YDF15 Series Valve for Agricultural Machine
In stock
| Presure Medium |
Mineral oil based hydraulic oil |
|---|---|
| Nominal Flow |
65 L/min (17 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
ZT12 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
40 L/min (10.5 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
ZT20 Manual Directional Control Valve
In stock
| Control Method |
manual |
|---|---|
| Presure Medium |
Mineral oil based hydraulic oil |
| Nominal Flow |
100 L/min (26.2 gpm) |
| Viscosity Range |
12 CST-400 CST |
| Operating Pressure |
200 bar (20 MPa) |
| Internal Leakage |
15 cc/min at 160 bar, 50℃ |
| Ambient Temp |
-40°C to +80°C (-40°F to +176°F) |
| Valve Structure |
Monoblock Valve |
| Valve Surface |
Phosphating treating |
| Valve Sections |
1-7 sections |
| Rustproof Level |
Neutral salt spray test, 48hours |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
